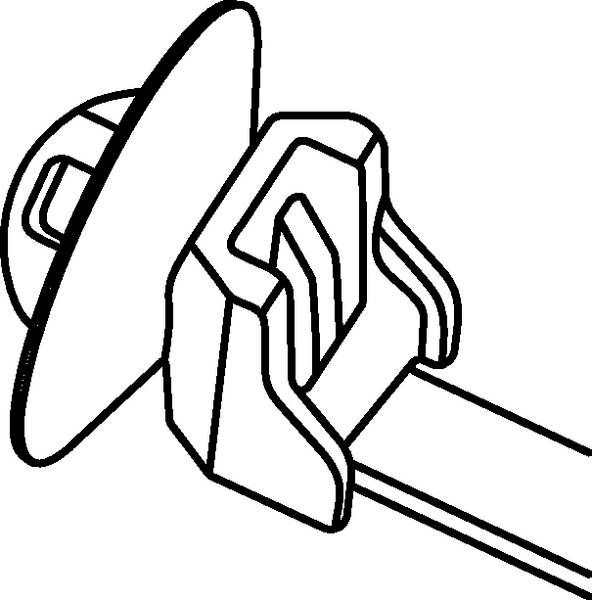

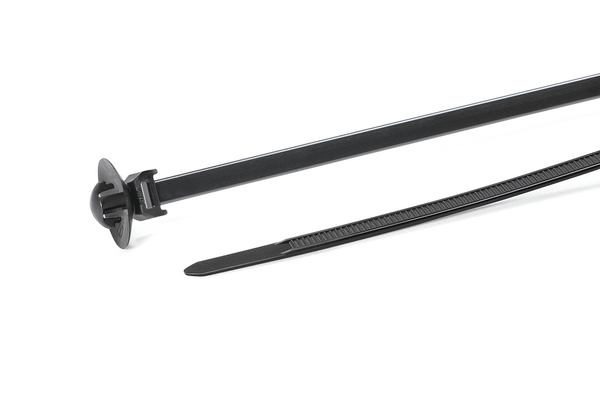

Fixing tie for hole (round), outside serrated, Ø1.0-35.0mm, black, 500pcs.
Nr. articol 126-00081
| T50SOSKSFT6.5E-PA66HS-BK
|
Detalii
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
- Cable tie head always situated in a defined position
- KSFT-types with specially rounded arrowhead minimise the assembly height
Solicitați acum oferta dumneavoastră individuală
Solicitați oferta
Mai multe produse în acest grup de produse:
Application | With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. |
Application Tool | ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP |
Colour | Black (BK) |
Fixation Method | arrowhead |
Identification Plate Position | none |
Material | Polyamide 6.6, heat stabilised (PA66HS) |

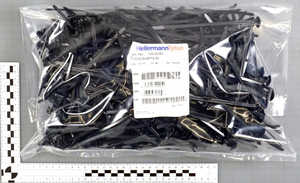

Pack Cont. | 500pcs. |
Package Content packed in | bag |
PART DESCRIPTION | T50SOSKSFT6.5E-PA66HS-BK |
Product Family | for round holes |
Product Group | 1-Piece Fixing Tie with Arrowhead, with Disc |
Releasable Closure (Yes/No) | No |
Short Description | Fixing tie 156x4.6 mm, arrowhead, heat stabilised, black |
Tie Closure | plastic pawl |
Variant | Outside Serrated |
Bundle Diameter max (metric) | 35.0mm |
Bundle ∅ | 1.0-35.0mm |
Bundle ∅ min. | 1.0mm |
Disc ∅ | 16.0mm |
for Hole ∅ (FH) | 6.3 - 6.7 mm |
for Panel Thickness min - max | 0.7 - 1.3 mm |
for Panel Thickness min - max | 0 - 0.1 " |
Length (L) | 156.0mm |
Min.Tensile Strength | 180N |
Panel Thickness max. | 0.7 - 1.3mm |
Weight/Unit | 0.0013kg |
Width (W) | 4.6mm |
|
|
Country of Origin | PL |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026299051 |
Packaging 1 - Height (m) | 0.09m |
Packaging 1 - Length (m) | 0.395m |
Packaging 1 - Qty | 500 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.016m³ |
Packaging 1 - Weight (kg) | 0.679135kg |
Packaging 1 - Width (m) | 0.45m |
Packaging 3 - Height (m) | 0.368m |
Packaging 3 - Length (m) | 0.584m |
Packaging 3 - Qty | 5000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.083m³ |
Packaging 3 - Weight (kg) | 7.61135kg |
Packaging 3 - Width (m) | 0.386m |
Packaging 4 - Height (m) | 1.248m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 60000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.198m³ |
Packaging 4 - Weight (kg) | 112.32kg |
Packaging 4 - Width (m) | 0.8m |
