Aluminium frame mount, T=5.5 – 6.0mm, natural, 100pcs.
Art.-No. 151-01066 | AFLM40-PA66-NA |  Details

AFLM30.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

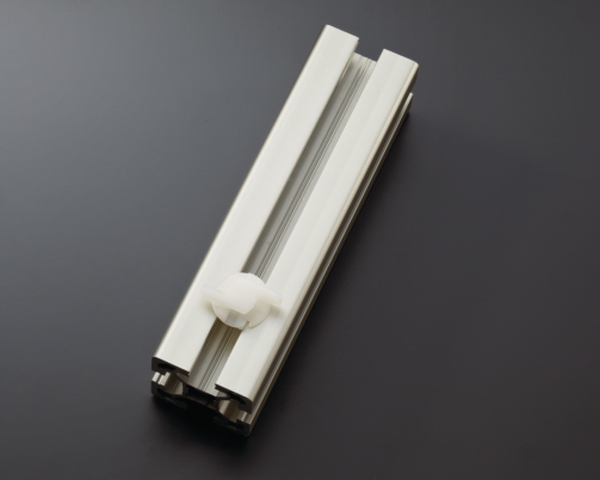

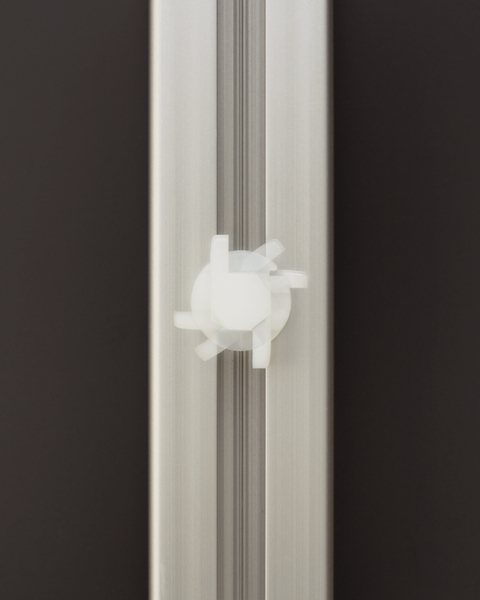

    Application Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles.
    Colour Natural (NA)
    For Pipe Size/Type Applicable Aluminum Frames: 40mm/45mm square type Panel Thickness: 5.5～6mm Slot Width:10mm
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION AFLM40-PA66-NA
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family AFLM series
    Product Group Fixing mount for aluminum frame
    Type AFLM40

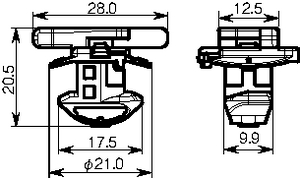

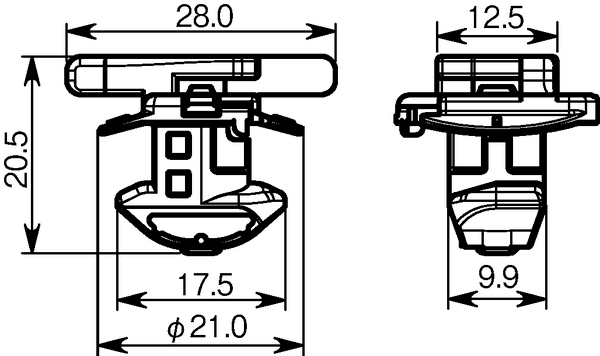

    Height (H) 20.5mm
    Length (L) 28.0mm
    Panel Thickness max. 5.5 – 6.0mm
    Width (W) 21mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4944387109849
    UNSPSC Key 39121717
