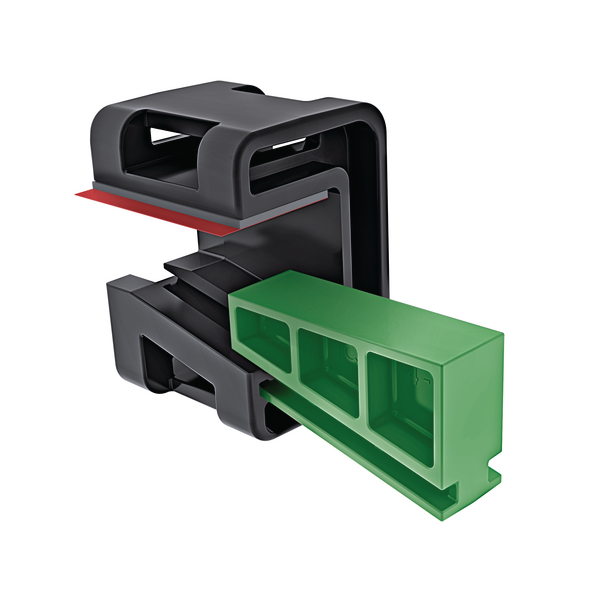

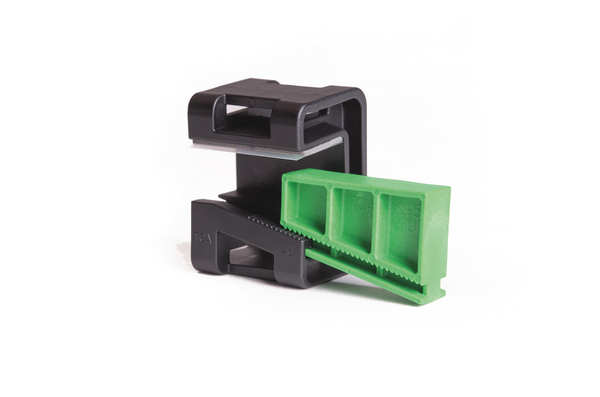

Cable tie mount for edge, Wmax=15.0mm, T=0 - 5.0mm, black/green, 200pcs.
Art.-No. 151-01565 | BCAA-PA66HSGF30-BK/GN |  Details

Two-piece ratcheting wedge design allows for easy, positive-locking size adjustment.

    • Easy to install
    • No damage to surfaces
    • Easy maintenance of bundle by simply changing cable tie
    • Cable tie head can be moved after bundling
    • Applicable to a wide range of panel thicknesses
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive/truck industry, these parts can be used in a wide variety of industries and applications where bundles need mounting. These heavy duty harness clips help to fix and secure cables, lines and hydraulic lines in truck, agriculture and railway vehicle construction, as well as in the ship building industry and industrial buildings.
    Colour Black (BK), Green (GN)
    Fixation Method Edge Clip
    Key product features vibration absorbing, for multiple routing
    Material Polyamide 6.6, heat stabilised, glass-fibre reinforced (PA66HSGF30)
    PART DESCRIPTION BCAA-PA66HSGF30-BK/GN
    Pack Content 200pcs.
    Package Content packed in bag
    Product Family Beam clamps / Wedge clips
    Product Group Heavy Duty Harness Clips
    Type BCAA
    Height (H) 43.10mm
    Height (H2) 12.5mm
    Length (L) 30.8mm
    Length (L2) 27.0mm
    Max. Tie Width (G) 15.0mm
    Panel Thickness 0 - 0.20"
    Panel Thickness max. 0 - 5.0mm
    Panel Thickness max. (imperial) 0.20"
    Panel Thickness min. (imperial) 0"
    Strap Width max. (G) 0.59"
    Width (W) 28.6mm
    for Panel Thickness min - max 0 - 5 mm
    Adhesive Acrylic foam
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +140 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026550701
    Packaging 1 - Height (m) 0.16m
    Packaging 1 - Length (m) 0.59m
    Packaging 1 - Qty 200
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03115m³
    Packaging 1 - Weight (kg) 4.456001kg
    Packaging 1 - Width (m) 0.33m
    Packaging 3 - Height (m) 0.37668199999999996m
    Packaging 3 - Length (m) 0.5902959999999999m
    Packaging 3 - Qty 600
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0635m³
    Packaging 3 - Weight (kg) 14.15kg
    Packaging 3 - Width (m) 0.285496m
    Packaging 4 - Height (m) 1.276m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 7200
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.225m³
    Packaging 4 - Weight (kg) 191.616kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
