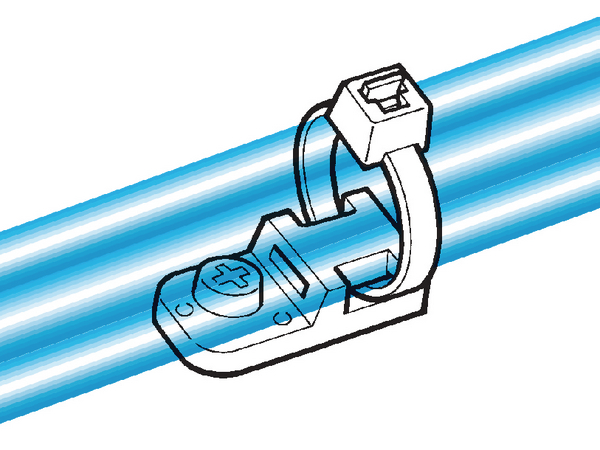

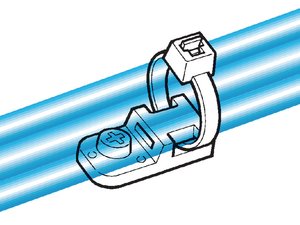

Cable tie mount for screw fixation, Wmax=5.0mm, ∅4.4 mm, M4 Screw, black, 100pcs.
Art.-No. 151-00671 | CTAM1-PPCOND-BK |  Details

CTAM mounts for applications with limited space.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Each of these products offers particular benefits, but all are designed for simple yet robust installation in a wide variety of applications. Particularly used in telecoms equipment, switchgear and control cabinets these cable tie mounts are also used within the aerospace and railway industry.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Material Conductive Polypropylene (PPCOND)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION CTAM1-PPCOND-BK
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family CTAM-Series for applications where space is limited
    Product Group Screw fixing mounts
    Type CTAM1
    Height (H) 5.2mm
    Height (H2) 1.8mm
    Length (L) 20.8mm
    Max. Tie Width (G) 5.0mm
    Width (W) 10.4mm
    for Hole ∅ (FH) 4.4 mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4944387942187
    UNSPSC Key 39121717
    Show all
