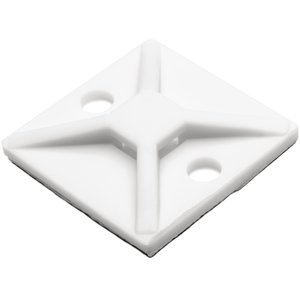

Cable tie mount for adhesive use, Wmax=2.7mm, white, 100pcs.
Art.-No. 151-01802 | MB2A-PA66-WH |  Details

Compact size fits most mounting applications.

    • Simple to instal
    • Excellent security, particularly in areas of high vibration
    • Maximum surface area with adhesive to achieve high pull-off force
    • 4-way entry for cable tie for quicker and more flexible installation
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Where speed, simplicity and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.
    Colour White (WH)
    Fixation Method Screw Mounting and Adhesive
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION MB2A-PA66-WH
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family MB-Series square design, self-adhesive
    Product Group Cable tie mounts
    Type MB2A
    Height (H) 4.1mm
    Length (L) 13.0mm
    Max. Tie Width (G) 2.7mm
    Thickness of Adhesive (TA) nom. 0.8
    Width (W) 13.0mm
    Adhesive Synthetic rubber with base of polyethylene foam
    Adhesive Operating Temperature -40 °C to +60 °C
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2 (excluding adhesive)
    Hazardous Goods No
    Operating Temperature -40 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 5022660311604
    Packaging 1 - Height (m) 0.081m
    Packaging 1 - Length (m) 0.194m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00281m³
    Packaging 1 - Weight (kg) 0.06677kg
    Packaging 1 - Width (m) 0.179m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 25000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 17.4945kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 500000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 372.04kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
