23/12/2024

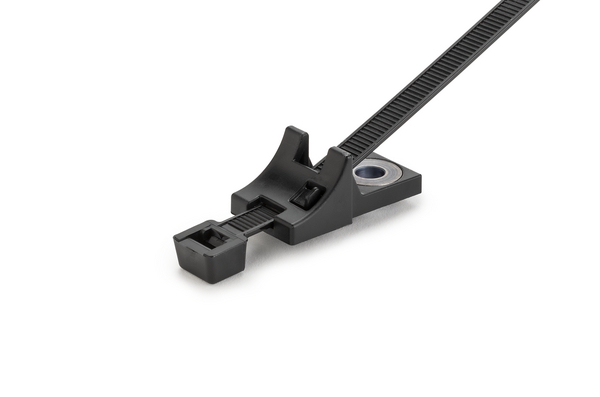

Fixing tie for screw fixation, inside serrated, ∅105.0mm, black, 500pcs.
Art.-No. 156-03055 | T120RCPCM6-SET-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION T120RCPCM6-SET-PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in box
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120RCPCM6-SET
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Height (H) 16.0mm
    Length (L) 390.0mm
    Min.Tensile Strength 535N
    Stud ∅ 0.24"
    Width (W) 7.6mm
    for Hole ∅ (FH) 6.2 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026647180
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Width (m) 0.31115m
    UNSPSC Key 39121731
