19/11/2024

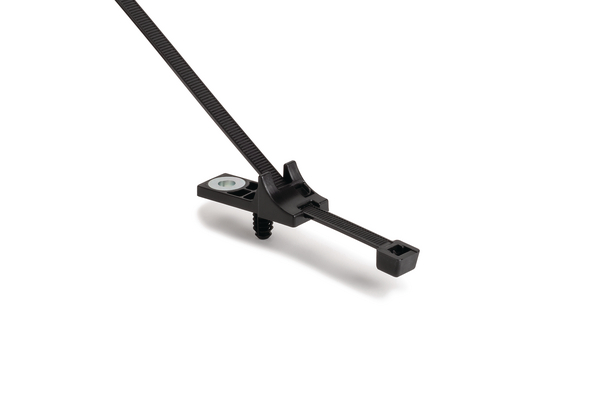

Fixing tie for screw fixation, inside serrated, ∅5.0-105.0mm, black, 1000pcs.
Art.-No. 156-02987 | T120RCPCM6FT6.5SET-PA66HIRHSUV-BK |  Details

Fir tree mounts are designed to provide low insertion force and high extraction force.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION T120RCPCM6FT6.5SET-PA66HIRHSUV-BK
    Pack Content 1000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120RCPCM6FT6.5SET
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ min. 5.0mm
    Height (H) 28.22mm
    Height (H2) 12.72mm
    Length (L) 385.0mm
    Min.Tensile Strength 535N
    Stud ∅ 0.24"
    Stud ∅ 6.0 mm
    Thickness (T) 1.8mm
    Width (W) 7.6mm
    Width (W2) 0.87"
    Width (W2) 20.0mm
    for Hole ∅ (FH) 6.2 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026642642
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
