22/12/2024

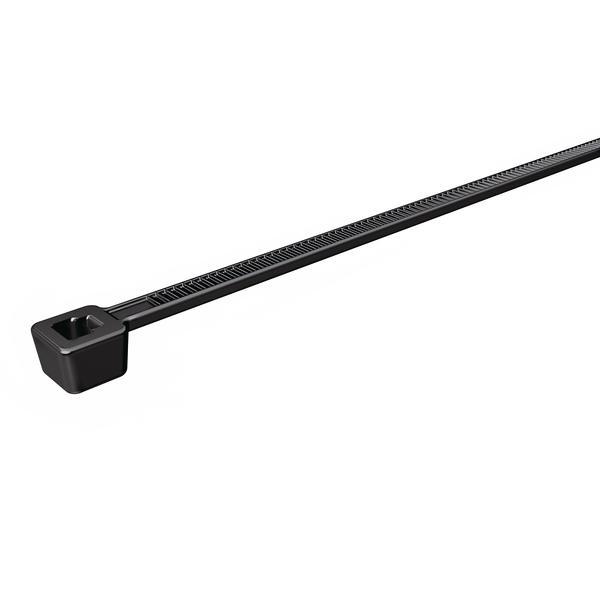

Cable tie inside serrated, 205.0x2.5mm, ∅1.5-50.0mm, black, 1000pcs.
Art.-No. 111-01393 | T18L-PA66-BK |  Details

The Allrounder: T-Series cable ties can be used for almost any type of application.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T18L-PA66-BK
    Pack Content 1000pcs.
    Product Group Cable Ties Polyamide 6.6 standard
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T18L
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Length (metric) 4.8mm
    Cable Tie Head Width (metric) 4.5mm
    Height (H) 3.9mm
    Length (L) 205.0mm
    Min.Tensile Strength 80N
    Strap Width max. (G) 0.18"
    Thickness (T) 1.2mm
    Width (W) 2.5mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 62275, csa-C22.2 no. 62275
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL-File Number E85319
    UV-Stabilised No
    GTIN-13 / EAN 4031026428390
    UNSPSC Key 39121703
    Cable Ties and Fixings Cable Ties and Fixings

    Cable Ties and Fixings

    Cable ties have to be able to meet the most varied demands these days as they are used in the widest range of operations – from the simple bundling of cables with cable ties to the absolutely specific use of cable ties under extreme conditions.

    Cable Ties >
    Cable management for high temperature applications Cable management for high temperature applications

    Cable management for high temperature applications

    High temperature is a key issue for many industries. We can replace metal with plastics such as PA46, PEEK and E/TFE (Tefzel®) – even in applications involving a high operating temperature and without compromising on quality and performance. Find out more about HellermannTyton’s expertise in injection-moulded cable management solutions made from high-performance, high-end thermoplastic. Get in touch with us! Your suggestions might be our inspiration for a new product to meet the demands of your application.

    Cable management high temperature applications >

    Cable clips for edges: fasten cables without drilling

    The EdgeClip is a cable-fastening solution that enables the flexible routing of wires, cable harnesses, conduits and pipes in a variety of industrial applications, including the automotive sector.

    Cable clips for edges >
