Cable tie inside serrated for direct fixation, 320x7.6mm, black, 100pcs.
Art.-No. 111-98100 | CTF12090-PA66-BK |  Details

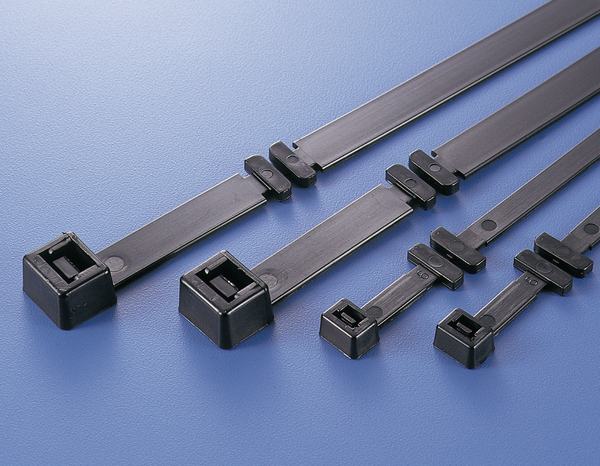

Cable ties CTF-Series.

    • Usable with common styles of cable tray
    • Meets rated break point to provide easy installation
    • No pulling of cable tie underneath cable harness
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

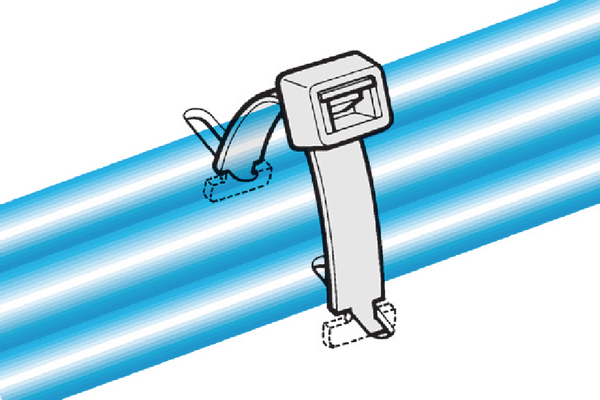

    Application The CTF Fixing Ties offering a more secure fixing that is also easier to install. The tie could use holes in the cable trays and panels to be applied.
    Colour Black (BK)
    Fixation Method Others
    Identification Plate Position none
    Key product features for direct fixation
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CTF12090-PA66-BK
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family CTF-Series
    Product Group Cable Ties inside serrated for cable tray
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type CTF12090
    Variant Inside Serrated

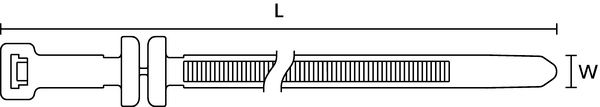

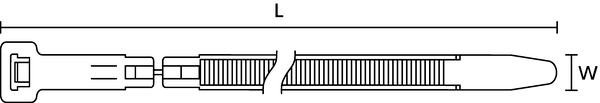

    Height (H) 7.6mm
    Length (L) 320mm
    Min.Tensile Strength 535N
    Thickness (T) 2mm
    Width (W) 7.6mm
    for Hole ∅ (FH) 7.0 x 16.0 mm, 10.0 x ∞ mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 5022660302787
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.406m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00247m³
    Packaging 1 - Weight (kg) 0.510001kg
    Packaging 1 - Width (m) 0.152m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 11.002kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 241.04kg
    Packaging 4 - Width (m) 0.8m
