Fixing tie for stud, ∅5.0-60.0mm, black, 25pcs.
Art.-No. 157-00023 | SBT120-M8-PA66HSUV-BK |  Details

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

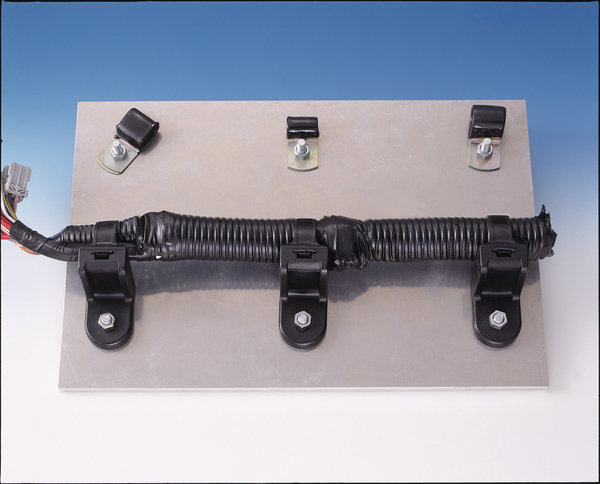

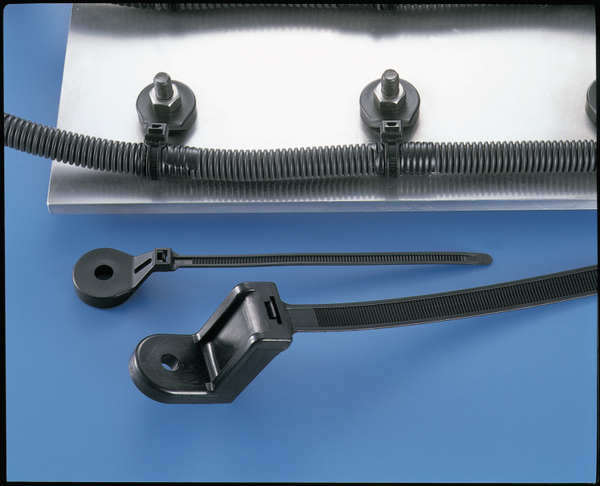

    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    Mounting Screw Type M8 Screw
    PART DESCRIPTION SBT120-M8-PA66HSUV-BK
    Pack Content 25pcs.
    Package Content packed in bag
    Product Family Studbolt Tie series
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Type SBT120-M8
    Bundle Diameter max (metric) 60.0mm
    Bundle ∅ min. 5.0mm
    Length (L) 300.0mm
    Min.Tensile Strength 533.4N
    Stud ∅ M8
    Thickness (T) 1.4mm
    Width (W) 13.0mm
    for Hole ∅ (FH) 8.2 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4944387931105
    UNSPSC Key 39121717
