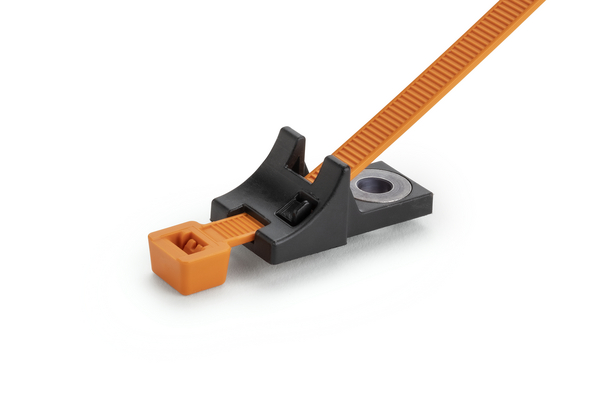

Fixing tie for screw fixation, inside serrated, ∅15.0-105.0mm, orange/black, 500pcs.
Art.-No. 156-04081 | T120RHDM6-PA66HIRHS-OG/BK | Details

Tie/mount combination eliminates the need to carry multiple sizes of fixed bundle diameter clamps.

Pre-assembled 2-piece fixing tie
Cable tie head can be moved after bundling
Secure alignment to the bundle due to H-design
A suitable alternative for metal clamps
Withstands vibrations and displacement forces
High tightening torque through metal bushing

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

2-piece fixing ties for heavy duty applications, for screws >

Base Data

Application	Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.
Cable Tie	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Colour	Orange (OG), High Voltage (HV), Black (BK)
Fixation Method	Screw Mount
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
For Screw Fixing	YES
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Mounting Screw Type	M6 Screw
PART DESCRIPTION	T120RHDM6-PA66HIRHS-OG/BK
Pack Content	500pcs.
Package Content packed in	bag
Product Family	HDM-Series
Product Group	2-piece fixing ties for heavy duty applications, for screws
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T120RHDM6
Variant	Inside Serrated

Product Dimensions

Bundle Diameter max (metric)	105.0mm
Bundle ∅ min.	15.0mm
Height (H)	16.0mm
Length (L)	387.0mm
Length (L2)	37.5mm
Min.Tensile Strength	535N
Strap Width max. (G)	0.3"
Width (W)	20.0mm
Width (W2)	0.7874"
Width (W2)	20.0mm
for Hole ∅ (FH)	M6

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +110 °C
Operating Temperature Foot Part (Metric)	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	4031026666624
Packaging 1 - Qty	100
Packaging 1 - Weight (kg)	2.6kg
Packaging 3 - Height (m)	0.20002499999999998m
Packaging 3 - Length (m)	0.51117499999999995m
Packaging 3 - Qty	500
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0318m³
Packaging 3 - Weight (kg)	14kg
Packaging 3 - Width (m)	0.31115m
Packaging 4 - Qty	20000

More Information

UNSPSC Key

39121717
