19/11/2024

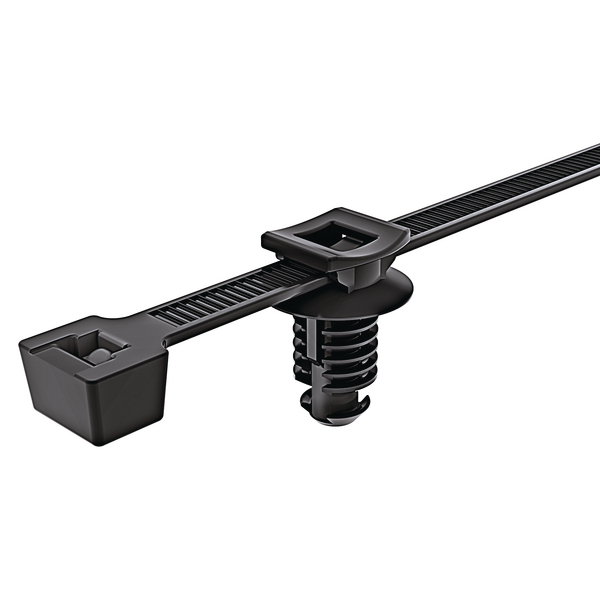

Fixing tie for hole (round), inside serrated, ∅100.0mm, black, 100pcs.
Art.-No. 156-00845 | T150RFT9-PA66HS/PA66HIRHS-BK | Details

T120IFT9

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

2-piece fixing ties with fir tree, with disc, for round holes >

Base Data

Application	Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Application Tool	ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour	Black (BK)
Fixation Method	Fir Tree
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	T150RFT9-PA66HS/PA66HIRHS-BK
Pack Content	100pcs.
Package Content packed in	bag
Product Family	Fir tree parts FT9
Product Group	2-piece fixing ties with fir tree, with disc, for round holes
Tie Closure	plastic pawl
Type	T150RFT9

Product Dimensions


Bundle Diameter max (metric)	100.0mm
Cable Tie Head Height (metric)	8.3mm
Cable Tie Head Length (metric)	10.5mm
Cable Tie Head Width (metric)	13.7mm
Disc ∅	20mm
Length (L)	365.0mm
Min.Tensile Strength	670N
Panel Thickness max.	5.0 - 11.0mm
Thickness (T)	1.6mm
Width (W)	7.6mm
for Hole ∅ (FH)	9.0 - 10.6 mm
for Panel Thickness min - max	5 - 11 mm

Downloads

Specifications

Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026435152

More Information

UNSPSC Key

39121717
