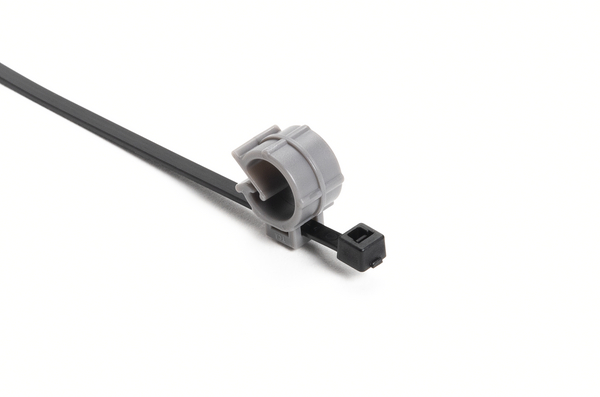

Fixing tie with pipe/tube holder, ∅5-30mm, black, 100pcs.
Art.-No. 156-00894 | T30ROC5J-P-PA66HSUV-BK |  Details

    • Fixed the cable and piping in the tie, the clip portion is freely moved cable installed.
    • The clip portion can be attached to the cable of up to 5mm diameter in one touch.
    • After putting the cable in the clip part, you can adjust the position of the cable by sliding with anti-slip function, the degree of freedom of design is enlarged.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Can be used for fixing on cables, piping, and sliding at the same time.
    Cable Tie Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    PART DESCRIPTION T30ROC5J-P-PA66HSUV-BK
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family Omega clip tie T30ROC5J_Series
    Product Group 2-piece fixing ties with pipe clip
    Releasable Closure (Yes/No) No
    Type T30ROC5J-P
    Attach to Diameter 0.43 "
    Attach to Ø 11.0
    Bundle Diameter max (metric) 30mm
    Bundle ∅ min. 5mm
    Length (L) 152.0mm
    Min.Tensile Strength 135N
    Thickness (T) 1.2mm
    Width (W) 3.5mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised Yes
    GTIN-13 / EAN 4944387101201
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.207001kg
    Packaging 3 - Height (m) 0.315m
    Packaging 3 - Length (m) 0.505m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0589m³
    Packaging 3 - Weight (kg) 4.67kg
    Packaging 3 - Width (m) 0.37m
    Packaging 4 - Height (m) 1.089m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.045m³
    Packaging 4 - Weight (kg) 77.04kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
