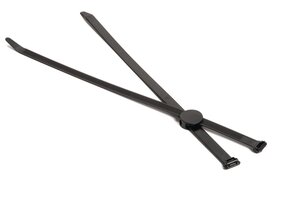

Fixing tie for cable bundles, inside serrated, ∅85.0mm, black, 500pcs.
Art.-No. 156-01517 | T50ICOUPLER-BK | Details

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

2-piece fixing ties for parallel separation >

Base Data

Application Tool	MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour	Black (BK)
Description	The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
Identification Plate Position	none
Key product features	for multiple routing
PART DESCRIPTION	T50ICOUPLER-BK
Pack Content	500pcs.
Package Content packed in	bag
Product Family	twistable up to 90°
Product Group	2-piece fixing ties for parallel separation
Tie Closure	plastic pawl
Type	T50ICOUPLER
Variant	Inside Serrated

Product Dimensions

Bundle Diameter max (metric)	85.0mm
Length (L)	300.0mm
Min.Tensile Strength	225N
Width (W)	4.6mm

Downloads

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026520308

More Information

UNSPSC Key

39121717
