13/11/2024

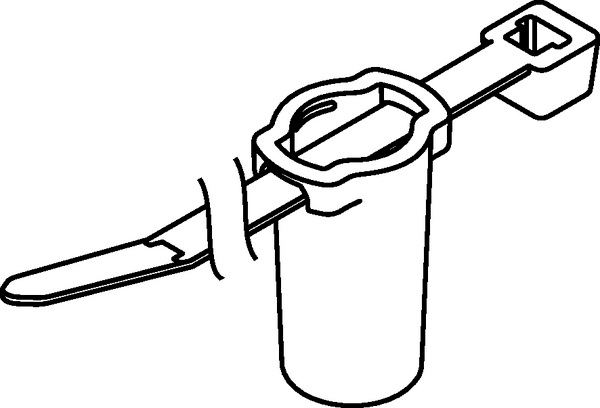

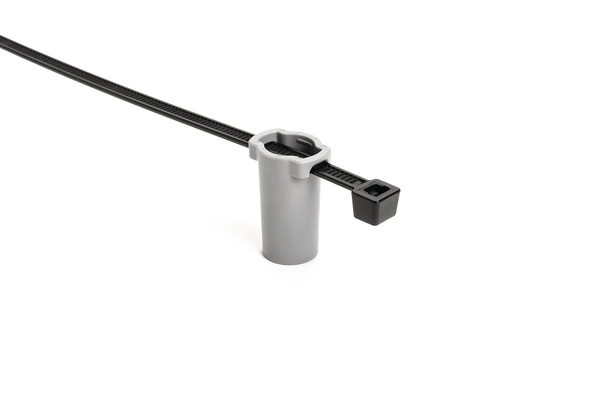

Fixing tie for stud, ∅4.0-50.0mm, black/grey, 2000pcs.
Art.-No. 156-01294 | T50R0GSBL5U-SET-PA66/PA66HIRHS-BK/GY |  Details

Versatile design allows cable routing above, perpendicular or parallel to stud.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK), Grey (GY)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6 (PA66), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50R0GSBL5U-SET-PA66/PA66HIRHS-BK/GY
    Pack Content 2000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50R0GSBL5U-SET
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 25.0mm
    Length (L) 203.2mm
    Min.Tensile Strength 110N
    Stud ∅ 0.20"
    Stud ∅ 5.0 mm
    for Hole ∅ (FH) M5 x 0.8, T5
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    GTIN-13 / EAN 4031026491158
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 7.02kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.222m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.173m³
    Packaging 4 - Weight (kg) 161.8kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121731
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
