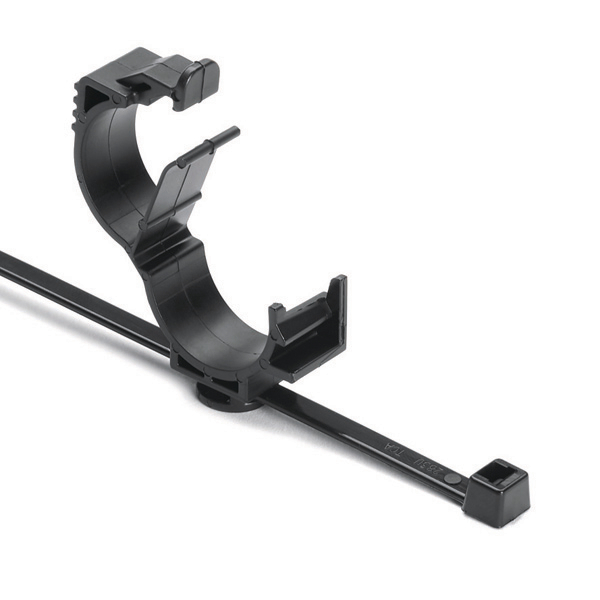

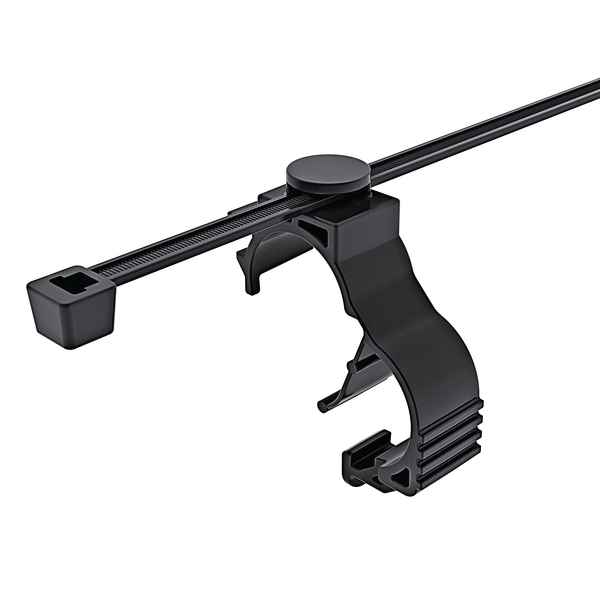

Fixing tie with pipe/tube holder, inside serrated, ∅10.0-14.0mm, black, 3000pcs.
Art.-No. 156-01092 | T50RLOC10-14-SET-PA66HS/PA66HIRHSUV-BK |  Details

The 360 degree locking enclosure and cable tie dynamically fit a range of bundle sizes.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ∅ max 50.0mm
    Cable ∅ min 5.0mm
    Colour Black (BK)
    Content 5000 T50R + 5000 LOC10-14
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50RLOC10-14-SET-PA66HS/PA66HIRHSUV-BK
    Pack Content 3000pcs.
    Package Content packed in carton
    Product Group 2-Piece Fixing Ties with Pipe Clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RLOC10-14-SET
    Variant Inside Serrated
    Bundle Diameter Nom. (ND) 10.0 mm - 14.0 mm
    Bundle Diameter max (metric) 14.0mm
    Bundle ∅ min. 10.0mm
    Depth (D) 12.0mm
    Height (H) 27.4mm
    Length (L) 27.6mm
    Length (L2) 20.6mm
    Min.Tensile Strength 225N
    Width (W) 12.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026462967
    Packaging 3 - Height (m) 0.3635375m
    Packaging 3 - Length (m) 0.5889625m
    Packaging 3 - Qty 3000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0612m³
    Packaging 3 - Weight (kg) 13.08kg
    Packaging 3 - Width (m) 0.28575m
    Packaging 4 - Height (m) 1.27m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.219m³
    Packaging 4 - Weight (kg) 173.16kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
