02/11/2024

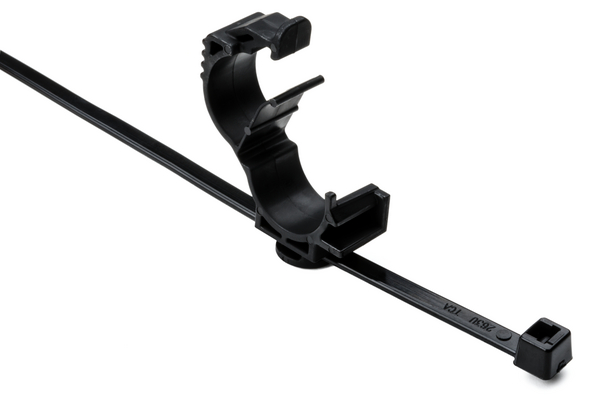

Fixing tie with pipe/tube holder, ∅10.0-14.0mm, black, 500pcs.
Art.-No. 156-01093 | T50RLOC10-14-PA66HS/PA66HIRHS-BK |  Details

The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ∅ max 50.0mm
    Cable ∅ min 5.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RLOC10-14-PA66HS/PA66HIRHS-BK

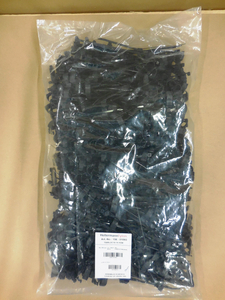

    Pack Content 500pcs.
    Package Content packed in box
    Product Group 2-piece fixing ties with pipe clip
    Type T50RLOC10-14
    Attach to Ø 10.0 - 14.0
    Bundle Diameter Nom. (ND) 10.0 mm - 14.0 mm
    Bundle Diameter max (metric) 14.0mm
    Bundle ∅ min. 10.0mm
    Length (L) 43.73mm
    Min.Tensile Strength 220N
    Width (W) 12.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026462974
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 2.000001kg
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 11kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 90.84kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
