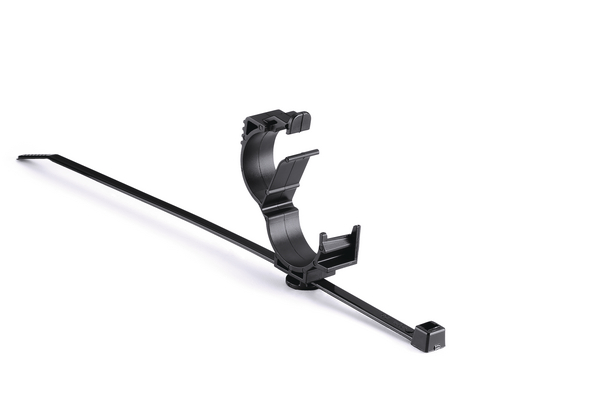

Fixing tie with pipe/tube holder, inside serrated, ⌀15.0-19.0mm, black, 1000pcs.
Art.-No. 156-01292 | T50RLOC15-19-SET-PA66HS/PA66HIRHSUV-BK

Copied
  • The 360 degree locking enclosure and cable tie dynamically fit a range of bundle sizes.
  • Clamp can be opened for bundle maintenance.
  • Low-profile release tab won't interfere with bundle or nearby routing.
  • The two bundles are allowed to rotate up to 90 degrees from one another.

Request your individual offer now

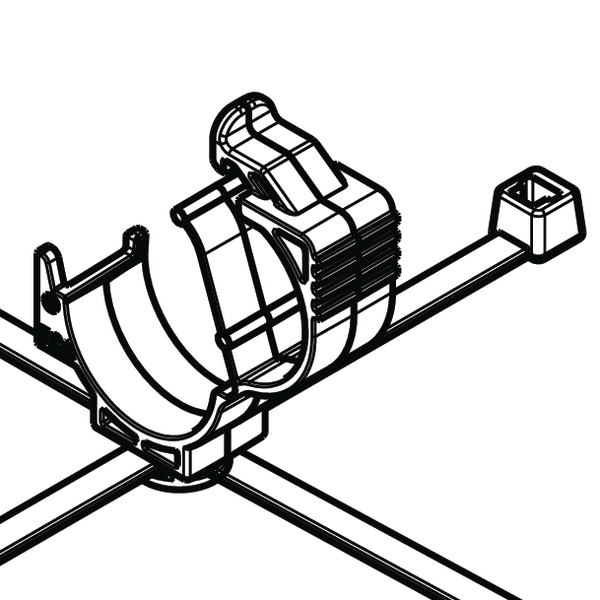

Application The 2-Piece LOC with Saddle to T50R Tie has a two-piece design that keeps two routings secured together while providing a semi-fixed orientation for each bundle. The saddle design allows 90-degree rotation of the bundles. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness.
Cable ⌀ max 50.0mm
Cable ⌀ min 5.0mm
Colour Black (BK)
Fixation Method Omega Clip
Identification Plate Position none
Key product features for multiple routing, removable
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION T50RLOC15-19-SET-PA66HS/PA66HIRHSUV-BK
Pack Content 1000pcs.
Package Content packed in pack
Product Group 2-Piece Fixing Ties with Pipe Clip
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50RLOC15-19-SET
Variant Inside Serrated
Bundle ⌀ max. 19.0mm
Bundle ⌀ min. 15.0mm
Bundle Diameter Nom. (ND) 15.0 mm - 19.0 mm
Depth (D) 12.0mm
Height (H) 33.4mm
Length (L) 31.6mm
Length (L2) 23.0mm
Min.Tensile Strength 225N
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026491127
Packaging 1 - Qty 2000
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 9.500001kg
Packaging 3 - Height (m) 0.20955m
Packaging 3 - Length (m) 0.60801m
Packaging 3 - Qty 2000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0506
Packaging 3 - Weight (kg) 9.87kg
Packaging 3 - Width (m) 0.39688m
Packaging 4 - Height (m) 1.269m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 30000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.218
Packaging 4 - Weight (kg) 176.25kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121705
