23/12/2024

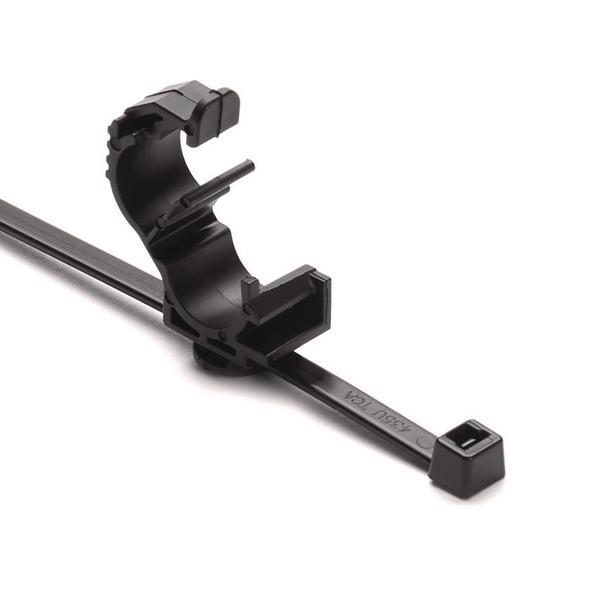

Fixing tie with pipe/tube holder, inside serrated, ∅5.0-9.0mm, black, 1000pcs.
Art.-No. 156-01289 | T50RLOC5-9-SET-PA66HS/PA66HIRHSUV-BK |  Details

The 360 degree locking enclosure and cable tie dynamically fit a range of bundle sizes.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ∅ max 50.0mm
    Cable ∅ min 5.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50RLOC5-9-SET-PA66HS/PA66HIRHSUV-BK
    Pack Content 1000pcs.
    Package Content packed in carton
    Product Group 2-Piece Fixing Ties with Pipe Clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RLOC5-9-SET
    Variant Inside Serrated
    Bundle Diameter Nom. (ND) 5.0 mm - 9.0 mm
    Bundle Diameter max (metric) 9.0mm
    Bundle ∅ min. 5.0mm
    Depth (D) 12.0mm
    Height (H) 23.6mm
    Length (L) 23.7mm
    Length (L2) 18.6mm
    Min.Tensile Strength 225N
    Width (W) 12.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026491073
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 3.538001kg
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Weight (kg) 4.41kg
    Packaging 3 - Width (m) 0.31115m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 20000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 106.26kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
