21/11/2024

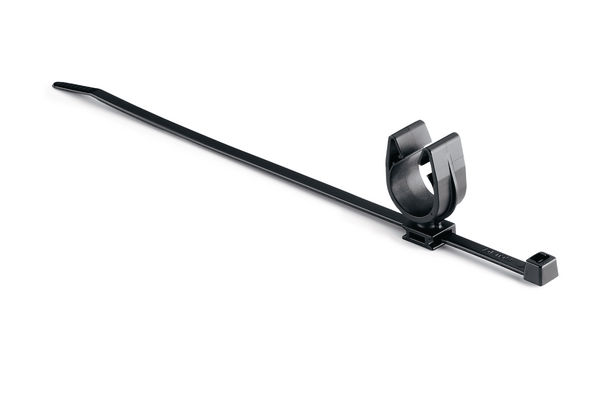

Fixing tie with pipe/tube holder, inside serrated, ∅14.0-18.3mm, black, 2000pcs.
Art.-No. 156-01818 | T50RMOC16SAD-SET-PA66HIRHSUV-BK |  Details

The bi-directional saddle design allows the bundles to be coupled parallel or perpendicular to one another.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ∅ max 50.0mm
    Cable ∅ min 1.5mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50RMOC16SAD-SET-PA66HIRHSUV-BK
    Pack Content 2000pcs.
    Package Content packed in carton
    Product Group 2-Piece Fixing Ties with Pipe Clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RMOC16SAD-SET
    Variant Inside Serrated
    Bundle Diameter Nom. (ND) 16.0 mm
    Bundle Diameter max (metric) 18.3mm
    Bundle ∅ min. 14.0mm
    Depth (D) 12.0mm
    Height (H) 31.9mm
    Length (L) 22.9mm
    Length (L2) 17.5mm
    Min.Tensile Strength 225N
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026592770
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Qty 40000
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
