13/11/2024

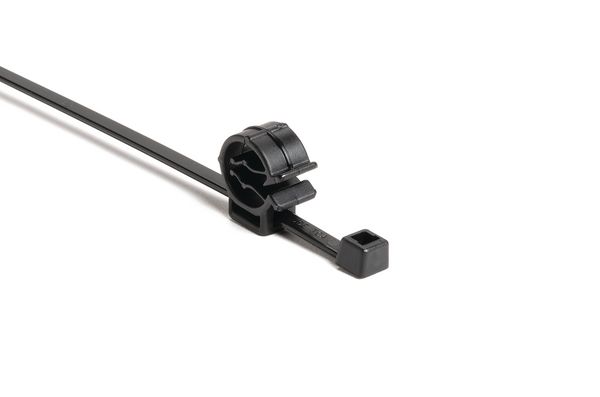

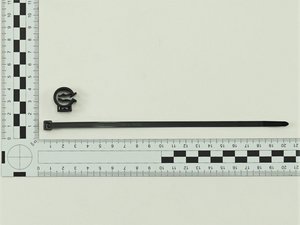

Fixing tie with pipe/tube holder, inside serrated, ∅4.0-45.0mm, black, 4000pcs.
Art.-No. 156-00177 | T50ROC1-SET-PA66HS/PA66HIRHS-BK |  Details

Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Content 3000 T50R + 3000 OC1
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROC1-SET-PA66HS/PA66HIRHS-BK
    Pack Content 4000pcs.

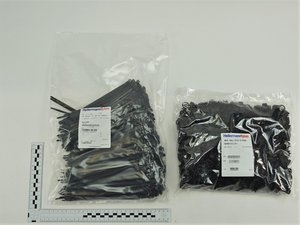

    Package Content packed in box
    Product Group 2-Piece Fixing Ties with Pipe Clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROC1-SET
    Variant Inside Serrated
    Attach to Diameter 0.16 - 0.39 "
    Attach to Ø 4.0 - 10.0
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ min. 4.0mm
    Length (L) 202.0mm
    Mechanical Strength 225N
    Min.Tensile Strength 222N
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026267296
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 11.85kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.235m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.186m³
    Packaging 4 - Weight (kg) 258.0kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121731
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
