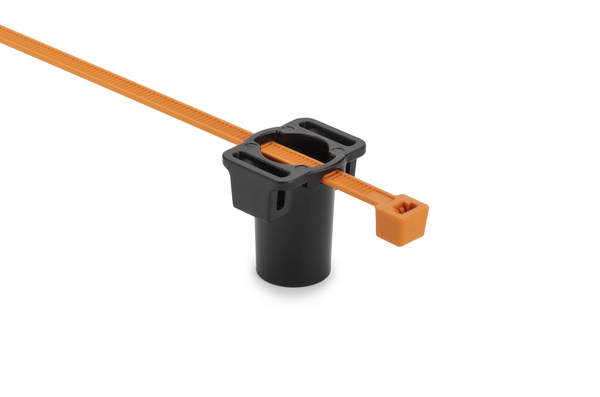

Fixing tie for stud, ∅4.0-50.0mm, orange/black, 2000pcs.
Art.-No. 156-04042 | T50ROSB8SET-PA66HIRHS/PA66HIRHSUV-OG/BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Orange (OG), High Voltage (HV), Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSB8SET-PA66HIRHS/PA66HIRHSUV-OG/BK
    Pack Content 2000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSB8SET
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 25.0mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Strap Width max. (G) 0.21"
    Stud ∅ 0.31"
    Stud ∅ 8.0 mm
    Width (W) 4.6mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026665825
    Packaging 3 - Height (m) 0.200m
    Packaging 3 - Length (m) 0.511m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Weight (kg) 8.5kg
    Packaging 3 - Width (m) 0.311m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
