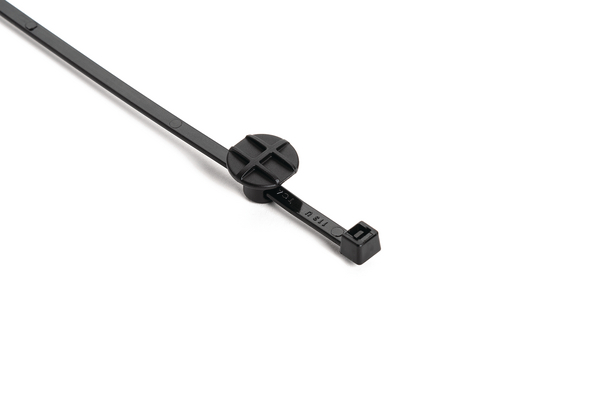

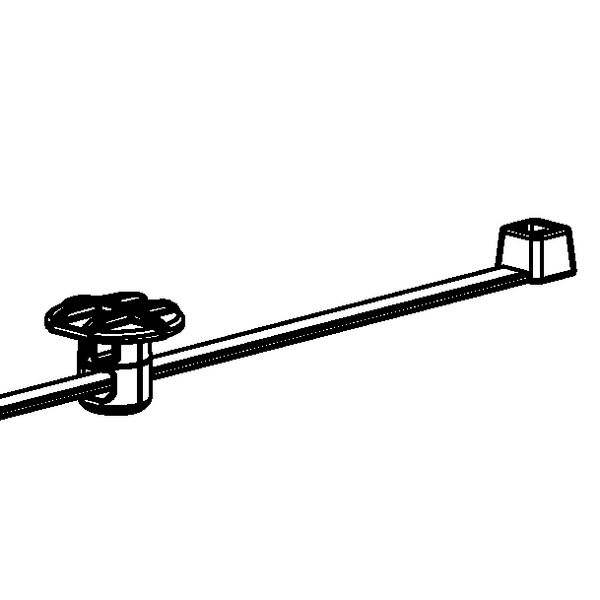

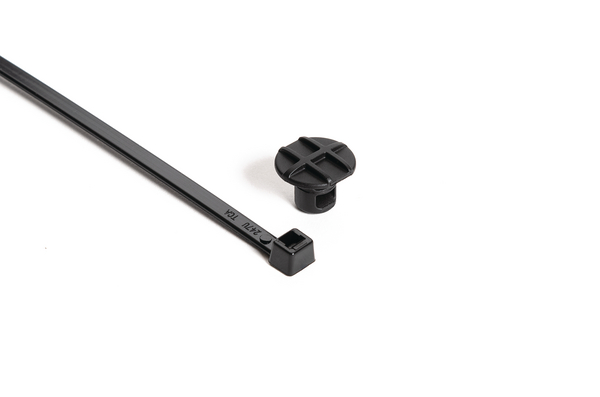

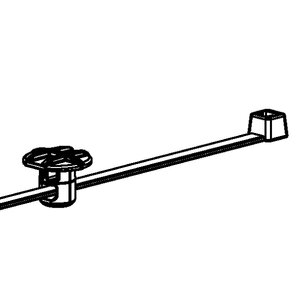

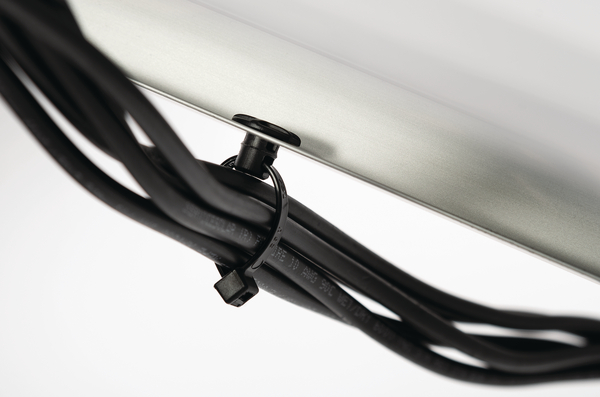

Fixing tie for cable bundles, inside serrated, ∅4.0-50.0mm, black, 500pcs.
Art.-No. 156-02512
| T50RPBM9SET-PA66HIRHSUV-BK
|
Details
| Colour | Black (BK) |
| Fixation Method | Button Head |
| Identification Plate Position | none |
| Key product features | for direct fixation |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | T50RPBM9SET-PA66HIRHSUV-BK |
| Pack Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | Button Head Cable Ties |
| Product Group | 2-piece fixing ties with button mount, for round holes |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50RPBM9SET |
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ min. | 4.0mm |

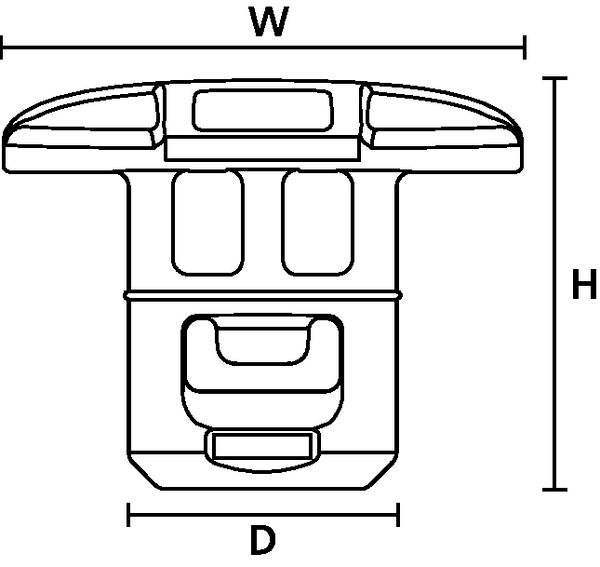

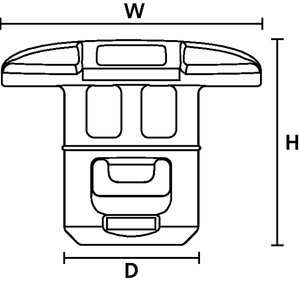

| Height (H) | 13.40mm |
| Length (L) | 203.2mm |
| Min.Tensile Strength | 225N |
| Panel Thickness | 0.12" |
| Panel Thickness max. | 3.0mm |
| Panel Thickness max. (imperial) | 0.12" |
| Width (W) | 17.0mm |
| for Hole ∅ (FH) | 9.0 mm, 9.0 x 12.0 mm, 9.0 x 14.0 mm |
| for Panel Thickness min - max | - 3 |
| ∅ (D2) | 17.0mm |
| ∅ D2 | 0.67" |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | Yes |
| UL Listed (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E64139 |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026664194 |
| Packaging 1 - Type | bag |
| Packaging 3 - Height (m) | 0.168275m |
| Packaging 3 - Length (m) | 0.26035m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0092m³ |
| Packaging 3 - Weight (kg) | 1.32kg |
| Packaging 3 - Width (m) | 0.20955m |
| Packaging 4 - Height (m) | 1.263m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 66000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.212m³ |
| Packaging 4 - Weight (kg) | 481.95kg |
| Packaging 4 - Width (m) | 0.8m |
