22/11/2024

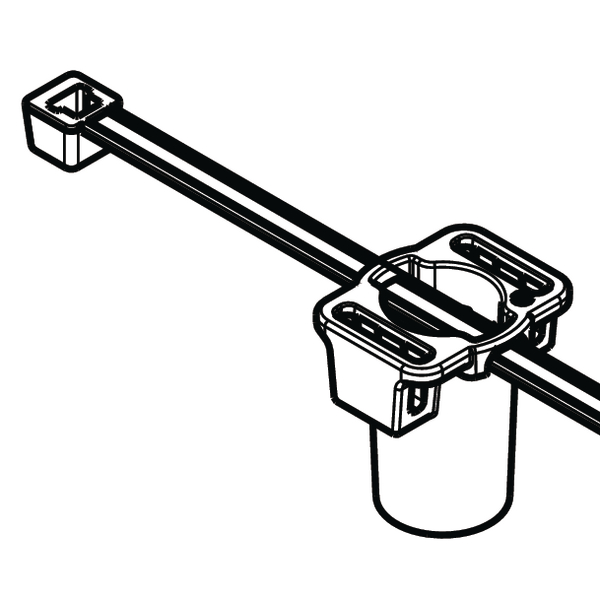

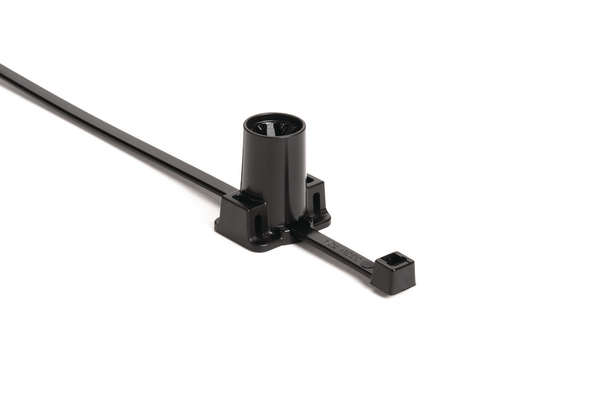

Fixing tie for stud, ∅4.0-50.0mm, black, 2500pc.
Art.-No. 156-01429 | T50RSB8SET-PA66HS/PA66HIRHSUV-BK |  Details

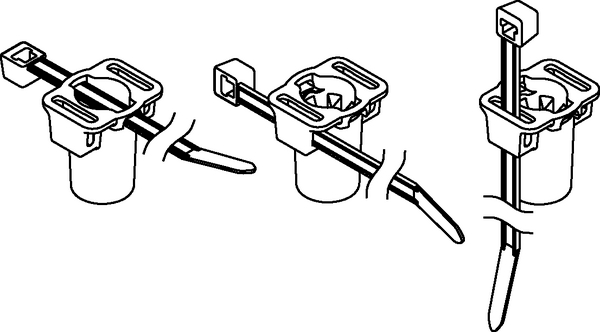

Mount can be used in a wide variety of applications where 8mm weld studs or 8mm ISO bolts.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50RSB8SET-PA66HS/PA66HIRHSUV-BK
    Pack Content 2500pc.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RSB8SET
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 25.0mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Stud ∅ 0.31"
    Stud ∅ 8.0 mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +125 °C, -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026512495
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 8.36kg
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
