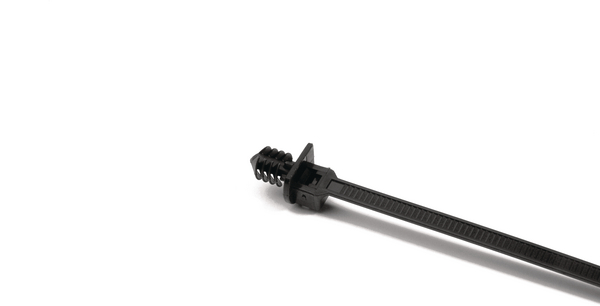

Fixing tie for hole (round), inside serrated, ∅1.5-50.0mm, black, 1000pcs.
Art.-No. 126-03501 | T50RTM25-PA66HS-BK |  Details

One-piece fir tree mount with cable tie includes protective disc to guard against dirt and other impurities entering the mounting hole.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50RTM25-PA66HS-BK
    Pack Content 1000pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT6
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Type T50RTM25
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 0.5"
    Disc ∅ 12.6mm
    Height (H) 1.3mm
    Length (L) 204.7mm
    Length of Fir Tree 10.6mm
    Min.Tensile Strength 225N
    Panel Thickness 0.05 - 0.28"
    Panel Thickness max. 1.32 - 7.0mm
    Panel Thickness max. (imperial) 0.28"
    Panel Thickness min. (imperial) 0.05"
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.2 - 7.0 mm
    for Panel Thickness min - max 1.3 - 7 mm
    for Panel Thickness min - max 0.1 - 0.3 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026421384
    Packaging 3 - Height (m) 0.22225m
    Packaging 3 - Length (m) 0.60325m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0532m³
    Packaging 3 - Weight (kg) 9.85kg
    Packaging 3 - Width (m) 0.396875m
    UNSPSC Key 39121703
