11/04/2025

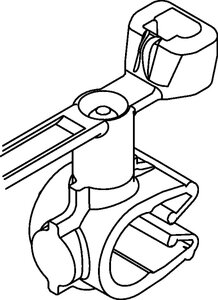

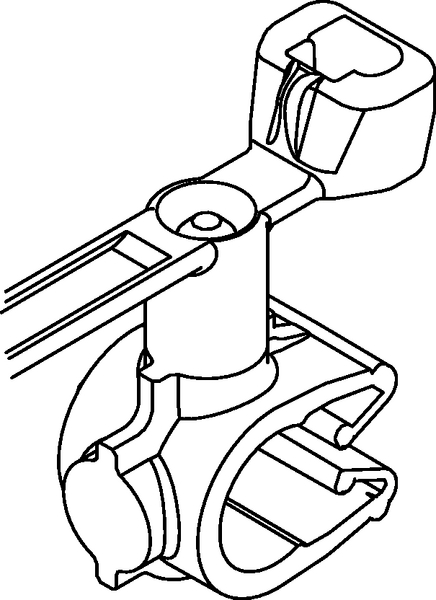

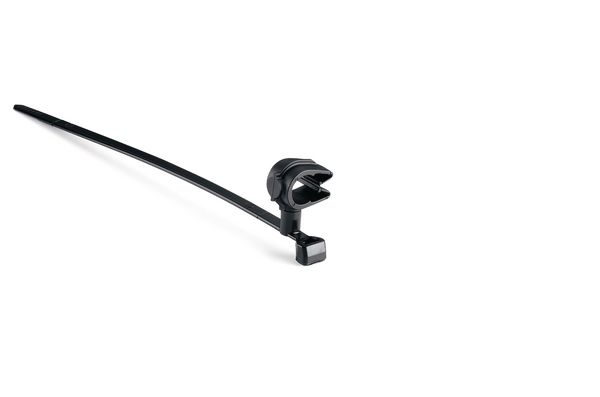

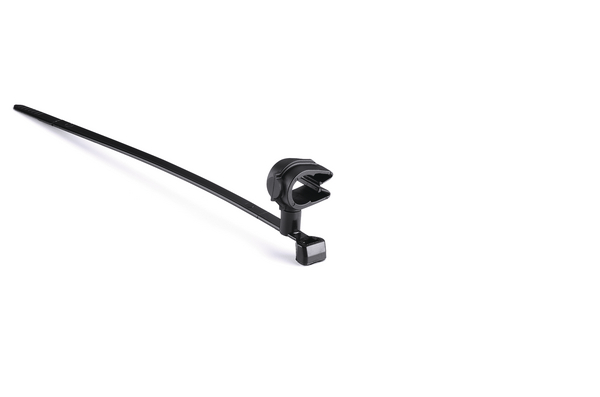

Fixing tie with pipe/tube holder, ⌀8.0-10.0mm, black, 2000
Art.-No. 156-02243 | T50SVCMOC9M-PA66HIRHSUV-BK |

Copied
Independent rotation allows for adjustable routing orientation.

    • Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
    • Controlled flex and angled entry promote easy installation.
    • Independent rotation allows for adjustable routing orientation.
    • Cable tie accommodates wide range of secondary bundle sizes.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The MOC to Swivel Tie is a rotatable routing clip coupled to a cable tie that keeps two routings secured and separated. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness. The swivel coupler allows the two routings to rotate independently of each other.
    Cable ⌀ max 35.0mm
    Cable ⌀ min 2.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50SVCMOC9M-PA66HIRHSUV-BK
    Pack Content 2000
    Package Content packed in pack
    Product Group 2-piece fixing ties with pipe clip
    Type T50SVCMOC9M
    Bundle ⌀ max. 10.0mm
    Bundle ⌀ min. 8.0mm
    Bundle Diameter Nom. (ND) 9.0 mm
    Depth (D) 10.0mm
    Height (H) 29.2mm
    Length (L) 17.2mm
    Length (L2) 15.4mm
    Min.Tensile Strength 225N
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026717739
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 200.99kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Weight (kg) 4.56kg
    Packaging 3 - Width (m) 0.39688m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    UNSPSC Key 39121702
