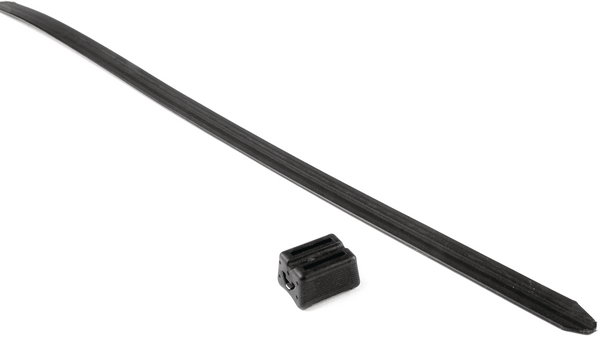

Cable tie endless, 343.0x12.7mm, black, 10pcs.
Art.-No. 111-32108 | TELS-13-POM-BK |  Details

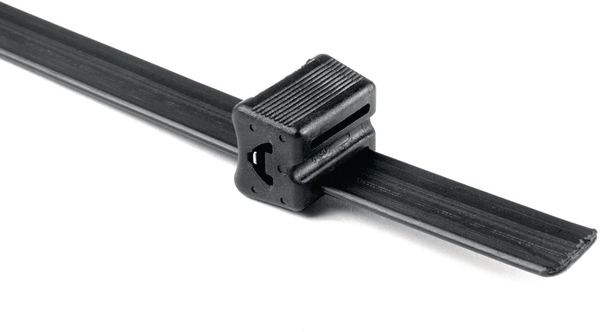

The EL-TY strap can be cut to suit any bundle.

    • Made of very strong Polyacetal (POM)
    • System consists of endless strap, spacers and heads
    • Head includes stainless steel pawls for a proper fixation
    • Very secure fixing and good resistance to ageing and UV light
    • Suits any bundle diameter and reduces inventory
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These robust cable ties are particularly suitable for use with larger diameter cables, pipes and hoses. Designed originally for securing overhead catenary and cables, they are now used in many industries from the building sector, through to the chemical industry, to the installation of signs for traffic management. Separate spacers allow for a defined distance when bundling in parallel.
    Cable Tie Polyacetal (POM)
    Colour Black (BK)
    Content 10 straps (340 mm), 10 heads
    Fixation Method 2 piece
    Identification Plate Position none
    Material Polyacetal (POM)
    Material Head Polyacetal (POM)
    Material Spacer Polypropylene, UV-resistant (PPW)
    PART DESCRIPTION TELS-13-POM-BK
    Pack Content 10pcs.
    Package Content packed in pack
    Product Family EL-TY-Series
    Product Group Endless cable ties with separate head and spacer
    Releasable Closure (Yes/No) No
    Tie Closure steel pawl
    Type TELS-13
    Variant Endless
    Height (H) 12.40mm
    Length (L) 343.0mm
    Min.Tensile Strength 1115N
    Thickness (T) 1.52mm
    Width (W) 12.7mm
    Width (W2) 0.8"
    Width (W2) 20.3mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +90 °C
    Operating Temperature Head (Metric) -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026420622
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 39121703
