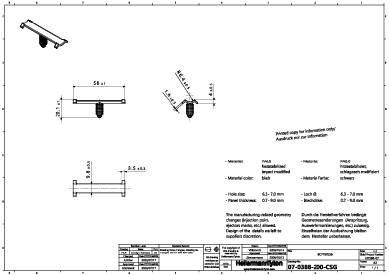

Bundling clip for hole (round), L=56.0mm, black, 5000pcs.
Art.-No. 151-00662 | BCFT6XL56-PA66HIRHS-BK |  Details

Bundling Clips with fir tree for a variety of applications with a wide range of panel thicknesses and drilled holes.

    • Easy to install without the need for a tool
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Holding tabs prevent the tie slipping sideways
    • Versions for oval holes feature anti-twist protection
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BCFT6XL56-PA66HIRHS-BK
    Pack Content 5000pcs.
    Package Content packed in bag
    Product Group Bundling Clips with Fir Tree
    Type BCFT6XL56
    Bundling Bar Length 56.0mm
    Length (L) 56.0mm
    Panel Thickness max. 0.7 - 9.0mm
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.7 - 9 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026298887
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 5000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 6.980411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 7.566663kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.235m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.186m³
    Packaging 4 - Weight (kg) 172.34kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
