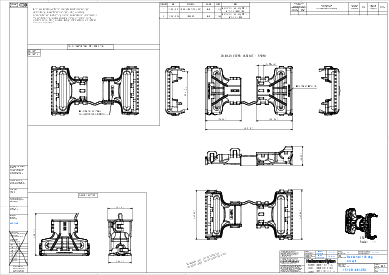

Backshell, 180°, nom∅17.0mm, black, 900pcs.
Art.-No. 151-02398 | BSE180NW17-PA66HS-BK |  Details

Backshell

    • Strain relief for corrugated tubes
    • Four shrouded locks
    • Strapping points fully integrated with cover for maximum retention of harness
    • Nominal diameter printed in backshell
    • Insertion support and pre-catch function audible by clicking simplify the closing, laying of the cables and saves time
    • Corrugated tube is completely enclosed by backshell, so that tube is not bruised in case of using an additional cable tie and cannot slip out of place especially during movement and vibration
    • Available in V0-material (flame retardent) especially for vehicles used for transportation of passengers
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The backshells or covers protecting the individual cables and wires from splashing water and dirt.
    Colour Black (BK)
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION BSE180NW17-PA66HS-BK
    Pack Content 900pcs.
    Package Content packed in box
    Product Family Backshell E, straight, NW 17 CTCS-series
    Product Group Connector Accessory Backshells, Group E
    Type BSE180NW17
    Angle 180
    Height (H) 27.15mm
    Length (L) 39.08mm
    Nominal ∅ 17.0mm
    Width (W) 53.29mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026608150
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 900
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.423kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 10800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 146.076kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
