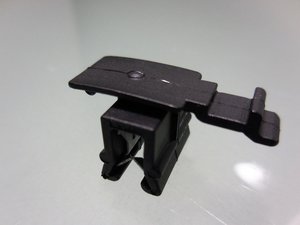

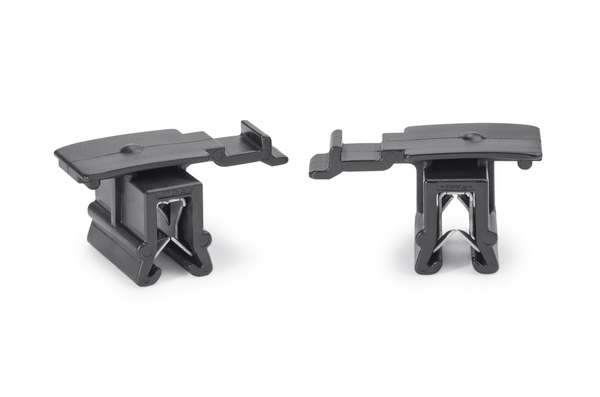

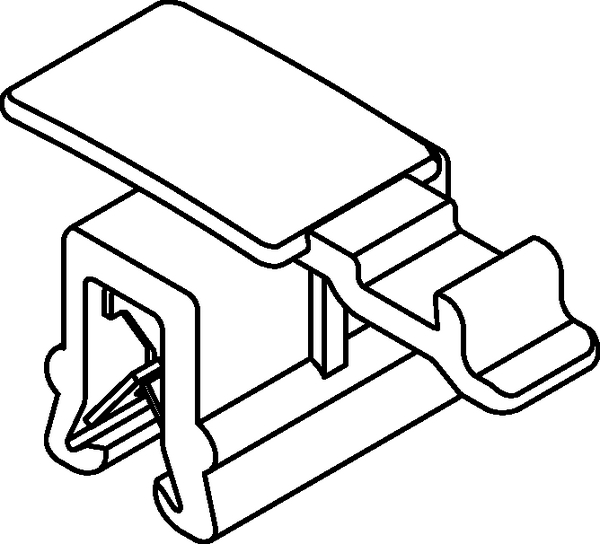

Connector clip for edge, black, 7000pcs.
Art.-No. 151-01142 | CCEC3TR-PA66HIRHS-BK |  Details

    • Simply push per hand onto a plastic edge
    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCEC3TR-PA66HIRHS-BK

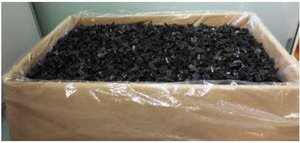

    Pack Content 7000pcs.
    Package Content packed in box
    Type CCEC3TR
    Height (H) 11.7mm
    Length (L) 27.0mm
    Panel Thickness max. 1.0 - 3.0mm
    Width (W) 10.0mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026461144
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 7000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 12.175411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 7000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 12.775411kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.235m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 168000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.186m³
    Packaging 4 - Weight (kg) 327.6kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
