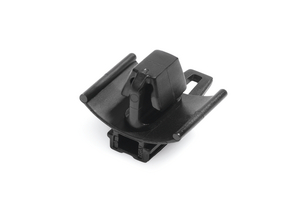

Connector clip for hole (oval), EWCAP-005-7, black, 5000pcs.
Art.-No. 133-00392 | CCIVSFT6.5x130-PA66HIRHS-BK |

Copied
Connector clip with arrowhead mount.

    • Connector easily installed by simply pushing into place
    • Connection can be released non-destructive
    • Easy assembly, just shuffle manually
    • Oval connectors offer twist protection
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The connector clip used here have been desgined for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Arrowhead for oval holes
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCIVSFT6.5x130-PA66HIRHS-BK
    Pack Content 5000pcs.
    Package Content packed in bag
    Product Family Connector clip with arrowhead mount
    Product Group Connector Clips for Oval Holes
    Type CCIVSFT6.5x130
    Fixing Hole Shape Oval
    Height (H) 14.6mm
    Length (L) 23.0mm
    Panel Thickness 0.03 - 0.12"
    Panel Thickness max. 0.7 - 3.0mm
    Panel Thickness max. (imperial) 0.12"
    Panel Thickness min. (imperial) 0.03"
    Width (W) 19.6mm
    for Hole ⌀ (FH) 6.5 x 13.0 mm
    for Panel Thickness min - max 0.7 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026299181
    Packaging 1 - Qty 5000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 5.655411kg
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 6.212104kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 170.088kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 31162305
