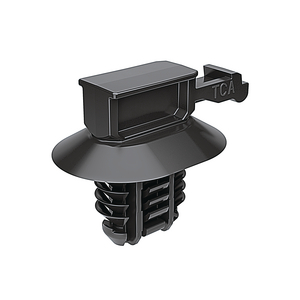

Connector clip for hole (oval), EWCAP-005-7, black, 5000pcs.
Art.-No. 151-01108
| CCOVAL2-PA66HIRHSUV-BK
|
Copied
- HellermannTyton Connector Clips provide a single method to mount connectors to various surfaces in a variety of applications.
- Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
- An assortment of Connector Cips is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
Request your individual offer now
Request quote
More products in this product group:
| Application | Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Key product features | ergonomic design |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | CCOVAL2-PA66HIRHSUV-BK |
| Pack Content | 5000pcs. |
| Package Content packed in | carton |
| Product Family | With FirTree |
| Product Group | Connector Clips for Oval Holes |
| Type | CCOVAL2 |
| Variant |
6.2 x 12.2 mm 6.5 x 12.5 mm 6.5 x 13.0 mm 7.0 x 12.0 mm |
| Fixing Hole Shape | Oval |
| Height (H) | 22.35mm |
| Height (H2) | 12.88mm |
| Length (L) | 29.0mm |
| Panel Thickness | 0.02 - 0.24" |
| Panel Thickness max. | 0.6 - 6.0mm |
| Panel Thickness max. (imperial) | 0.24" |
| Panel Thickness min. (imperial) | 0.02" |
| Width (W) | 17.6mm |
| for Hole ⌀ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6 mm |
Download
|
|
|
| GTIN-13 / EAN | 4031026452319 |
| Packaging 1 - Height (m) | 0.12m |
| Packaging 1 - Length (m) | 0.599m |
| Packaging 1 - Qty | 5000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.02796m³ |
| Packaging 1 - Weight (kg) | 6.100001kg |
| Packaging 1 - Width (m) | 0.389m |
| Packaging 3 - Height (m) | 0.20954999999999998m |
| Packaging 3 - Length (m) | 0.6048375m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0501m³ |
| Packaging 3 - Weight (kg) | 7.21kg |
| Packaging 3 - Width (m) | 0.39528749999999997m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 75000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 125.25kg |
| Packaging 4 - Width (m) | 0.8m |
