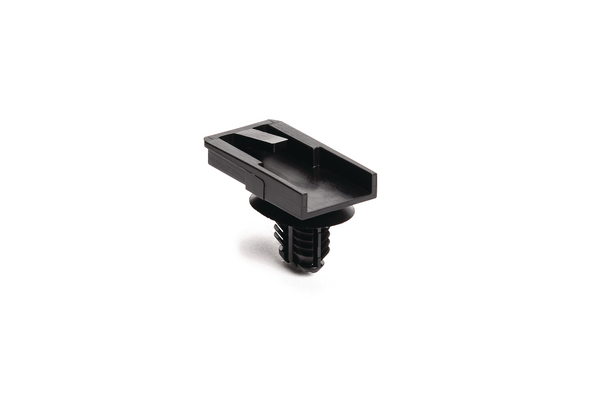

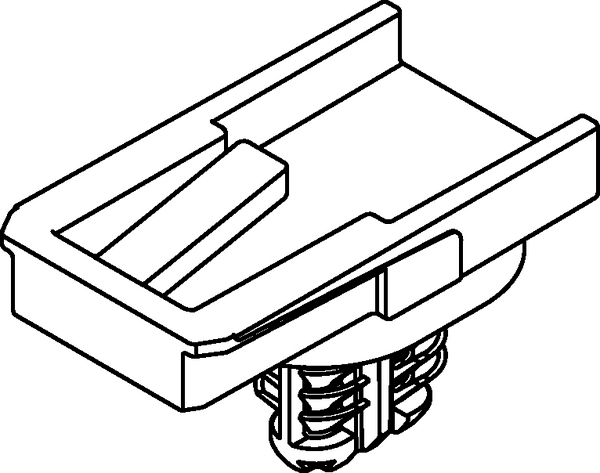

Connector clip for hole (oval), EWCAP-005-23, black, 1500pcs.
Art.-No. 133-04724 | CCOVAL23OS10-PA66HIRHS-BK

Copied
  • Connector clip design meets USCAR EWCAP-005-23 clip slot specifications for added assurance.
  • 10 mm connector clip offset allows for clearance from obstructions.
  • 4x oval fir tree design fits panels between 0.6 mm to 6.75 mm in thickness, preventing rotation.
  • Provides best-in-class installation and extraction resistance for four common oval sizes, reducing part inventory.

Request your individual offer now

Application Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
Colour Black (BK)
Fixation Method Fir Tree for oval holes
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CCOVAL23OS10-PA66HIRHS-BK
Pack Content 1500pcs.
Package Content packed in pack
Type CCOVAL23OS10

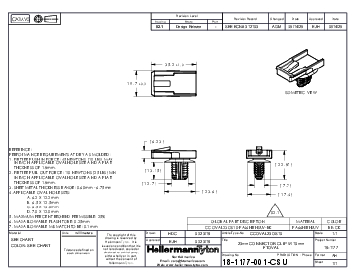

Height (H) 22.87mm
Length (L) 35.2mm
Panel Thickness 0.02 - 0.27"
Panel Thickness max. 0.6 - 6.75mm
Panel Thickness max. (imperial) 0.27"
Panel Thickness min. (imperial) 0.02"
Width (W) 19.7mm
for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 6.8 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
UV-Stabilised No
GTIN-13 / EAN 4031026725772
Packaging 1 - Type carton
Packaging 3 - Height (m) 0.1397m
Packaging 3 - Length (m) 0.51276m
Packaging 3 - Qty 1500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0223
Packaging 3 - Weight (kg) 5.34kg
Packaging 3 - Width (m) 0.31115m
Packaging 4 - Qty 84000
UNSPSC Key 39121702
