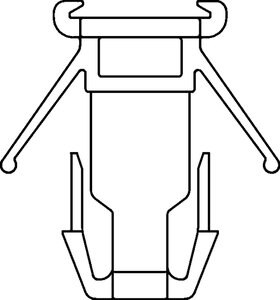

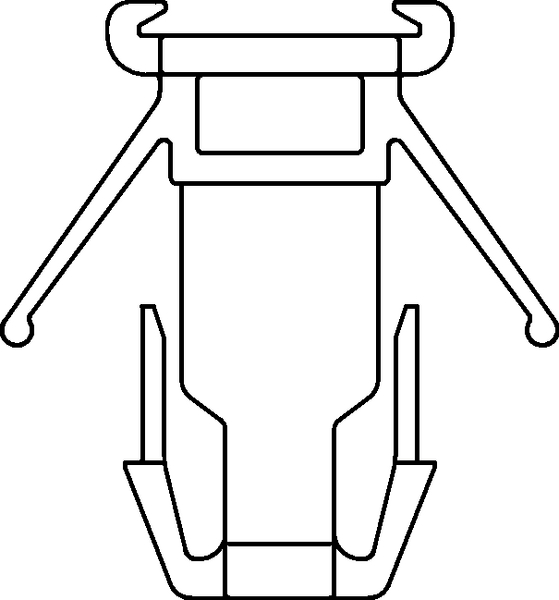

Connector clip, black, 100pcs.
Art.-No. 151-03216 | CCWPM712B-PA66HSW-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    PART DESCRIPTION CCWPM712B-PA66HSW-BK
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family CCWPM712 for Oval Holes
    Product Group Connector Clip with Arrowhead
    Type CCWPM712B
    Height (H) 15.0mm
    Length (L) 27.3mm
    Panel Thickness max. 12.0mm
    Width (W) 25.5mm
    for Hole ∅ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 6 - 12 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    GTIN-13 / EAN 4944387121803
    UNSPSC Key 39121702
