11/03/2025

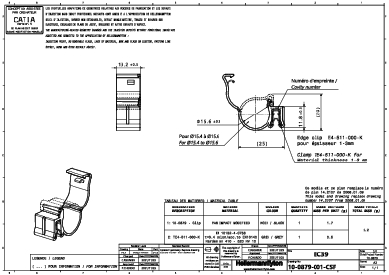

Cable clip for edge, T=1.0 - 3.0mm, Dmin=15.3mm, Dmax=15.9mm
Art.-No. 151-03611 | EC39-PA6HIRHS-BK |

Copied

    • Clips to be pushed onto an edge
    • Low-vibration routing of bigger bundle diameters
    • To be closed single handed, a snap can be felt
    • Bundels can be released at any time
    • Covers are releasable for maintenance or post-installations
    • EC27 and HCEC3.0SP-C: fixing element enables use of smaller bundle diameters
    • EC41: for parallel guidance of two bundles
    • HCEC3.0TPS: specially rounded surface to minimise risk of injury
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Edge Clip
    Key product features lockable, releasable, removable
    Material Polyamide 6, high impact modified, heat stabilised (PA6HIRHS)
    PART DESCRIPTION EC39-PA6HIRHS-BK
    Pack Content 250pcs.
    Package Content packed in box
    Product Group Fixing Elements for Tubes and Harnesses, for Edges
    Type EC39
    Bundle ⌀ max. 15.9mm
    Bundle ⌀ min. 15.3mm
    Height (H) 11.8mm
    Nominal ⌀ 0.63"
    Nominal ⌀ 15.6mm
    Panel Thickness 0.04 - 0.12"
    Panel Thickness max. 1.0 - 3.0mm
    Panel Thickness max. (imperial) 0.12"
    Panel Thickness min. (imperial) 0.04"
    Width (W) 13.2mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026679969
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.35m
    Packaging 1 - Qty 250
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00403m³
    Packaging 1 - Weight (kg) 0.54875kg
    Packaging 1 - Width (m) 0.23m
    UNSPSC Key 31162305
