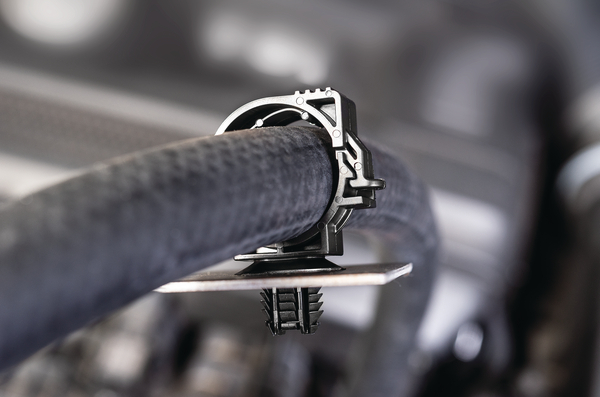

Cable clip for hole (oval)/with pipe/tube holder, T=0.6 - 5.5mm, ∅6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=20.0mm, Dmax=25.0mm, nom∅=20.0 mm - 25.0 mm
Art.-No. 151-02536
| LOC20-25FTOVAL-PA66HIRHSUV-BK
|
Details
- For fixing and bundling convoluted tubes and pipes
- Suitable for nearly every application
Request your individual offer now
Request quote
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Key product features | lockable, removable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | LOC20-25FTOVAL-PA66HIRHSUV-BK |
| Pack Content | 1000pcs. |
| Package Content packed in | carton |
| Type | LOC20-25FTOVAL |
| Bundle Diameter Nom. (ND) | 20.0 mm - 25.0 mm |
| Bundle Diameter max (metric) | 25.0mm |
| Bundle ∅ min. | 20.0mm |
| Depth (D) | 12.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 55.5mm |
| Length (L) | 37.2mm |
| Panel Thickness | 0.02 - 0.22" |
| Panel Thickness max. | 0.6 - 5.5mm |
| Panel Thickness max. (imperial) | 0.27" |
| Panel Thickness min. (imperial) | 0.02" |
| Width (W) | 12.0mm |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 5.5 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026662701 |
| Packaging 1 - Height (m) | 0.203m |
| Packaging 1 - Length (m) | 0.598m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.04734m³ |
| Packaging 1 - Weight (kg) | 4.713kg |
| Packaging 1 - Width (m) | 0.39m |
| Packaging 3 - Height (m) | 0.2159m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.052m³ |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Qty | 30000 |
