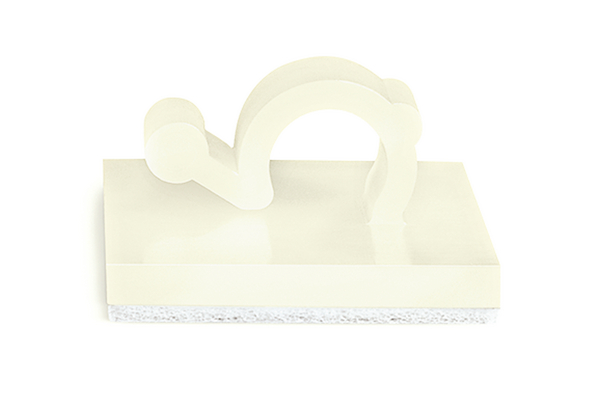

Cable clip for adhesive use/with pipe/tube holder, Dmax=6.0mm
Art.-No. 151-13401 | RA6-PA66-NA |  Details

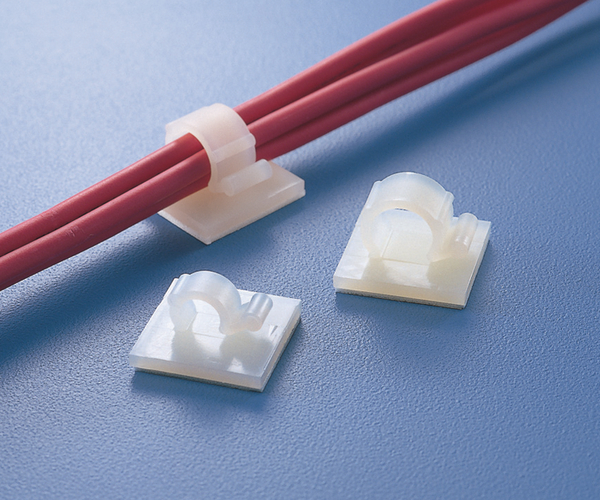

RA6 self-adhesive clip for a quick and easy installation.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These mounts are ideal for use in applications which are difficult to access or for areas where self adhesive is the only possible fixing method and fixing holes would be unacceptable. The self adhesive mounts can be used without cable ties. Offering process optimization in industries like automotive, bus and truck, construction vehicles or industrial building.
    Colour Natural (NA)
    Fixation Method Pasting / Stick
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION RA6-PA66-NA
    Pack Content 50pcs.
    Package Content packed in bag
    Product Family RA-Series
    Product Group Mounts with cable clip, self-adhesive
    Type RA6
    Variant Closed
    Bundle Diameter max (metric) 6.0mm
    Height (H) 9.0mm
    Length (L) 19.0mm
    Nominal ∅ 6mm
    Width (W) 19.0mm
    Width (W2) 5.0mm
    Adhesive Synthetic rubber with base of polyethylene foam
    Adhesive Operating Temperature -40 °C to +60 °C
    Flammability UL 94 V2 (excluding adhesive)
    Operating Temperature -40 °C to +85 °C
    UV-Stabilised No
    GTIN-13 / EAN 5022660314582
    UNSPSC Key 39121702
