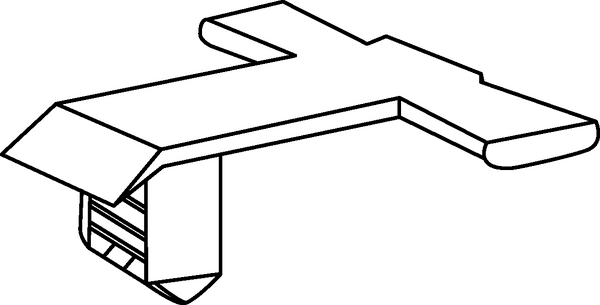

Bundling clip for hole (oval), L=42.0mm, SO=18.0mm, black
Art.-No. 133-00824 | SOC25FT63x100-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION SOC25FT63x100-PA66HIRHS-BK
    Package Content packed in bag
    Type SOC25FT63x100
    Bundling Bar Length 42.0mm
    Fixing Hole Shape Oval
    Length (L) 42.0mm
    Length (L2) 18.0mm
    Offset Length 18.0mm
    Panel Thickness max. 0.6-2.5mm
    for Hole ∅ (FH) 6.3 x 10.0 mm
    for Panel Thickness min - max 0.6 - 2.5 mm
    GTIN-13 / EAN 4031026435053
    UNSPSC Key 39121702
