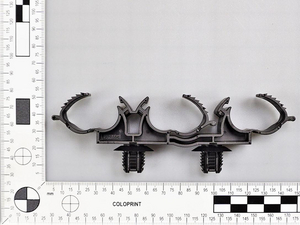

Cable clip for cable bundles/for hole (oval), T=0.6 - 5.0mm, ∅6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=12.2mm, Dmax=18.2mm
Art.-No. 151-02967 | THC12.2-18.2FTOVAL-PA66HIRHS-BK |  Details

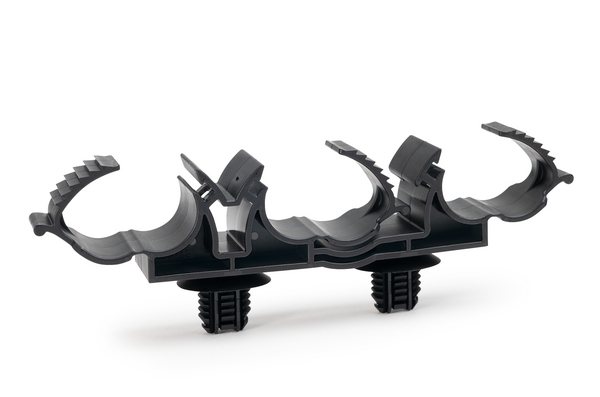

Fixing element for parallel routing of three harnesses or tubes (12.2 - 18.0mm).

    • 3-way clip for bundling and securing cables, for oval holes
    • For parallel / multiple routing
    • can be used without cable ties due to clip function
    • Ratchet function allows for different cable diameters
    • Clip can be opened for maintenance purposes without damaging the clip
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The clips are used to guide HV cables, harnesses and tubes. The products are designed to offer high stability within the application. The ratchet closure makes it possible to guide different cable diameters in parallel.
    Colour Black (BK)
    Key product features for multiple routing, for direct fixation, lockable, releasable, for faster processing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION THC12.2-18.2FTOVAL-PA66HIRHS-BK
    Pack Content 580

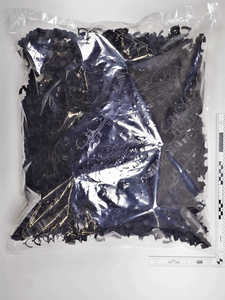

    Package Content packed in bag
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type THC12.2-18.2FTOVAL
    Attach to Ø 12.2 - 18.2
    Bundle Diameter max (metric) 18.2mm
    Bundle ∅ min. 12.2mm
    Fixing Hole Centres (F) 45.0mm
    Height (H) 46.0mm
    Length (L) 139.0mm
    Panel Thickness max. 0.6 - 5.0mm
    Width (W) 20.0mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 12.2 mm
    for Panel Thickness min - max 0.6 - 5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026625553
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
