BSPSW123B-PET-OG
Art.-No. 170-03083 | BSPSW123B-PET-OG Details

  • Split wrap design installs quickly, saving assembly time and future accessibility without disassembly
  • Unique construction retains shape and rigidity throughout unrolling
  • Easy open design allows quick assembly, future access, and ability to apply protective sleeving post assembly or post installation situations

Request your individual offer now

Colour Orange (OG), High Voltage (HV)

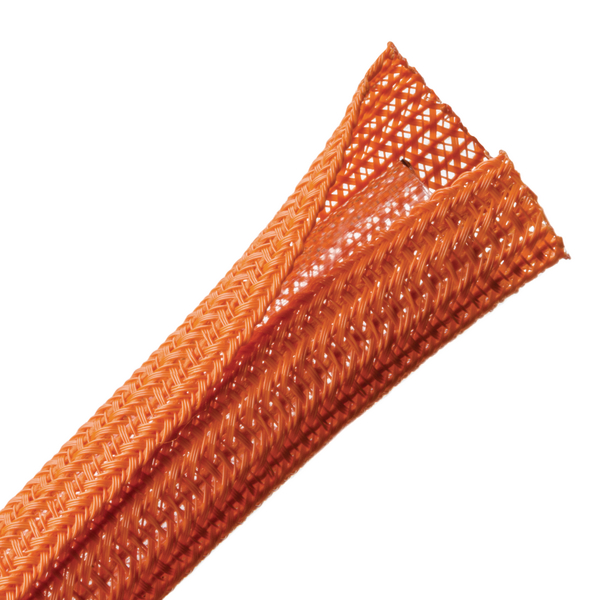

Description A lateral split, semi-rigid and flame retardant braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires.
Material Polyester (PET)
Open, post termination (Yes/No) No
PART DESCRIPTION BSPSW123B-PET-OG
Pack Content 45.7m
Package Content packed in reel
Type BSPSW123B
Bundle Diameter max (metric) 12.7mm
Bundle ∅ min. 2.54mm
Diameter (D) 12.7mm
Length (L) 45.7m
Nominal ∅ 0.5"
Nominal ∅ 12.7mm
Wall (WT) 0.64mm
Wall (WT) 0.025"
∅ D 0.50"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability UL 94 V0
Halogen-free Yes
Melting Point +250 °C
Operating Temperature -70 °C to +125 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E147924
UV-Stabilised Yes
GTIN-13 / EAN 4031026440965
Packaging 1 - Weight (kg) 0.95kg
Reel Length 150.0ft
Reel Length 45.7m
UNSPSC Key 39131602
