BSSWV340B-PET-BK
Art.-No. 170-03184 | BSSWV340B-PET-BK |  Details

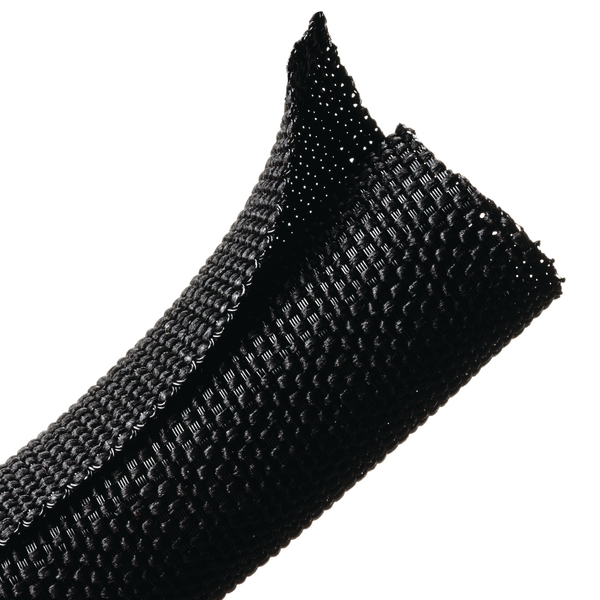

Split overlapping design allows quick and easy access to wires and cables for future maintenance or inspection without disassembly

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSSWV340B-PET-BK
    Pack Content 45.7m
    Package Content packed in reel
    Type BSSWV340B
    Bundle Diameter max (metric) 19.1mm
    Bundle ∅ min. 2.54mm
    Diameter (D) 19.1mm
    Length (L) 45.7m
    Nominal ∅ 0.75"
    Nominal ∅ 19.1mm
    Wall (WT) 0.68mm
    Wall (WT) 0.027"
    ∅ D 0.75"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Melting Point +250 °C
    Operating Temperature -70 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026476612
    Packaging 1 - Weight (kg) 1.63kg
    Reel Length 150.0ft
    Reel Length 45.72m
    UNSPSC Key 39131602
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    Perfect cable protection with flexible conduits and fittings, braided sleeving, spiral binding and cable protection tubing ...
