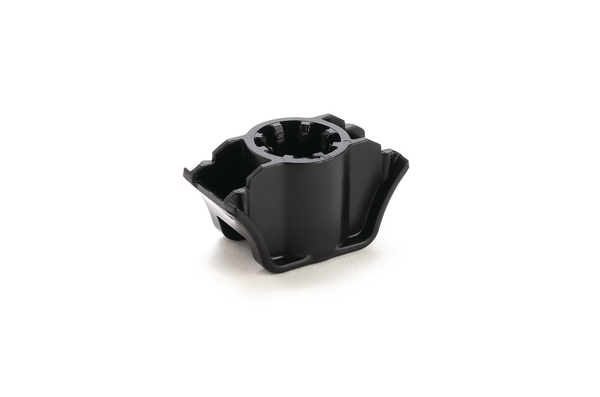

Cable tie mount for stud, Wmax=13.2mm, ∅12.7 mm, black, 900pcs.
Art.-No. 151-00975 | HM5A-PA66HIRHSUV-BK | Details

H-Mounts utilize existing frame rail bolts eliminating the need for additional fasteners.
When used with cable ties, the H-Mounts eliminate the need to carry multiple sizes of fixed bundle diameter clamps which reduces inventory and purchasing costs.
Top tie slot allows bundles to be positioned in up to three locations, to provide multiple use options.
Side tie slots are are curved to minimize bundle abrasion and position the bundles adjacent to the bolt yet away from the frame.

Request your individual offer now

Request quote

More products in this product group:

Colour	Black (BK)
Description	HellermannTyton H-Mounts offer a secure bundling solution that utilizes existing frame rail bolts which reduces component costs and improves installation time. The H-mounts have three bundle mounting locations each accommodating ties up to 1/2" wide. H-Mounts fasten with three bolt sizes: 1/2", 5/8", and 3/4". The top tie slot allows the bundle to be positioned directly over the bolt. The two curved tie slots on the sides position the bundles adjacent to the bolt yet away from the frame.
Fixation Method	Stud Mount
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	HM5A-PA66HIRHSUV-BK
Pack Content	900pcs.
Package Content packed in	bag
Product Family	H-Mount Series
Product Group	Stud Bolt Mounts
Type	HM5A
