23/12/2024

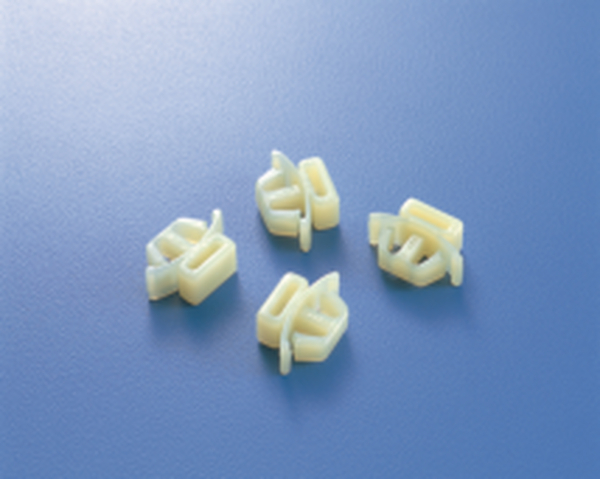

Cable tie mount for hole (oval), Wmax=7.8mm, natural, 100pcs.
Art.-No. 151-00576 | TDY1-PA66HS-NA |  Details

    • Secures direct wiring to the outside of the wiring duct in combination with tie.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application To prevent noise generation, it is a cable fixing accessory used to wire the signal line outside of the duct.
    Colour Natural (NA)
    Fixation Method with Arrowhead / Push Mount (Mounts)
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION TDY1-PA66HS-NA
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family TDY Series
    Product Group Mounting for wiring ducts
    Strap Thickness max. 1.8
    Type TDY1

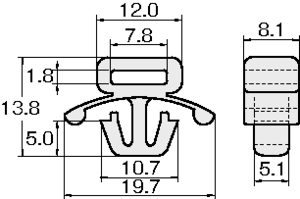

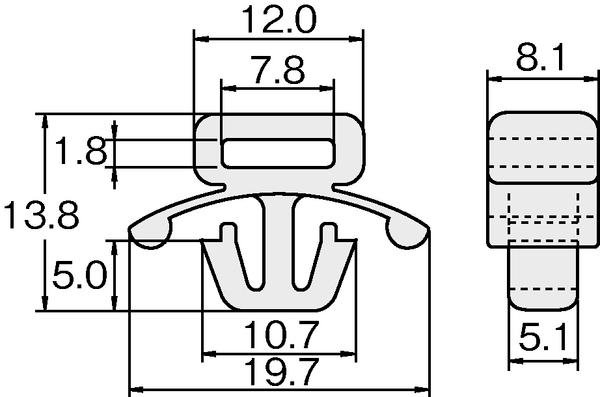

    Height (H) 13.8mm
    Length (L) 12mm
    Max. Tie Width (G) 7.8mm
    Wall (WT) 8mm
    Wall (WT2) 2.0mm
    Width (W) 19.7mm
    Width (W2) 10.7mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4944387310009
    UNSPSC Key 39121717
