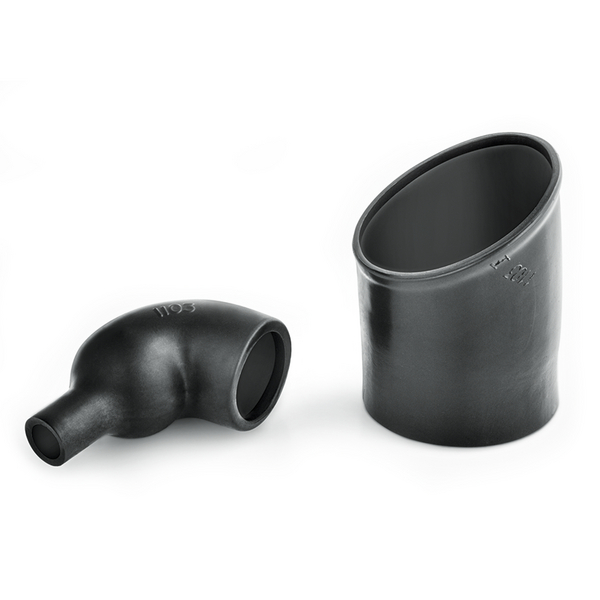

Right-Angle Shapes, MIL style
Art.-No. 411-09014 | 1109-4-J-PO-X-BK | Details

1108-4 supplied / fully recovered.

Used in conjunction with a circular grooved adaptor for strain relief

Package size

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Right-Angle Shapes, MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1109-4-J-PO-X-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, MIL style
Type	1109-4-J
Variant	For plug

Product Dimensions


Angle	90
Flexibility	Flexible
HW ± 20 %	3.8mm
JW ± 30 %	3.8mm
P ± 10 %	97.5mm
R ± 10 %	66mm
S nom.	40.6mm
T ± 10 %	2mm
∅H max. b	44.5mm
∅H min. a	66mm
∅J max. b	20.3mm
∅J min. a	66mm

Downloads

RoHS datasheet

Download

Specifications

Dielectric Strength	18kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Min. Shrink Temperature - °C	+135 °C
Nato number	5970-01-107-9889
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	19MPa
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	5022660410666
Packaging 1 - Height (m)	0.080m
Packaging 1 - Length (m)	0.200m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00192m³
Packaging 1 - Weight (kg)	0.058kg
Packaging 1 - Width (m)	0.120m

More Information

UNSPSC Key

39121721
