Right-Angle Shapes, VG style
Art.-No. 411-57012 | 1157-4-J-PO-X-BK | Details

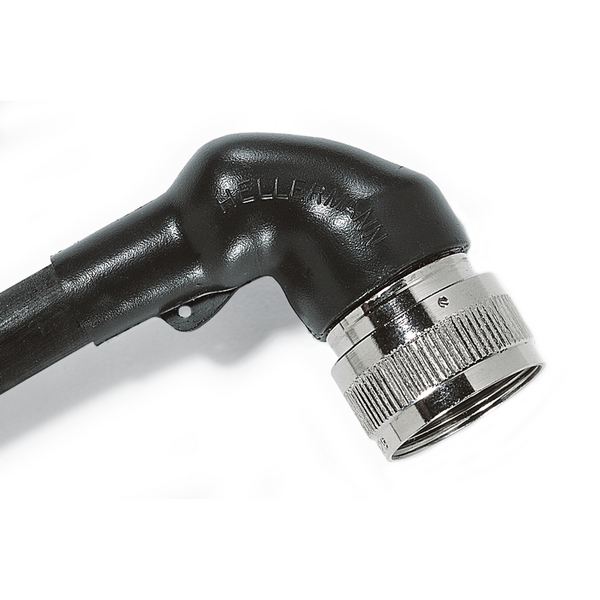

1152-4-G recovered onto a connector.

Used in conjunction with a circular grooved adaptor
Provides strain relief and an environmental seal

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Right-Angle Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1157-4-J-PO-X-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, VG style
Type	1157-4-J
Variant	For plug

Product Dimensions


Angle	90
Flexibility	Flexible
HW ± 20 %	2mm
JW ± 30 %	1mm
M nom.	30mm
R ± 10 %	45mm
S nom.	16mm
T ± 20 %	1.7mm
V max.	3.3mm
∅H max. b	28.5mm
∅H min. a	43mm
∅J max. b	10mm
∅J min. a	43mm

Downloads

Specifications

Dielectric Strength	18kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Min. Shrink Temperature - °C	+135 °C
Nato number	5970-99-756-9995
Operating Temperature	-55 °C to +150 °C
ROHS compliant	Yes
Specifications
Tensile Strength	19MPa
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	5022660416637
Packaging 1 - Height (m)	0.050m
Packaging 1 - Length (m)	0.120m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.0006m³
Packaging 1 - Weight (kg)	0.013001kg
Packaging 1 - Width (m)	0.100m

More Information

UNSPSC Key

39121721
