T-Shapes, VG style/MIL style
Art.-No. 412-02019 | 1202-1-G-PO-X-BK | Details

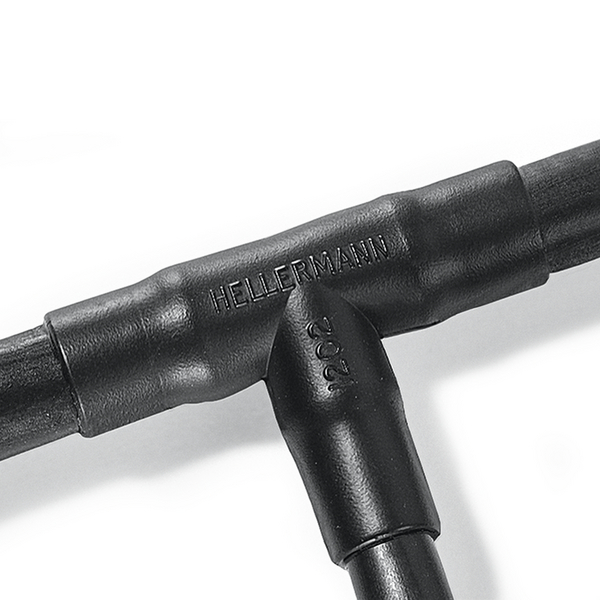

1202-1-G recovered onto a cable harness.

Strain relief, sealing and mechanical protection on cable harnesses

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

T-Shapes, VG style/MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1202-1-G-PO-X-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 1200 Series
Product Group	T-Shapes, VG style/MIL style
Type	1202-1-G
Variant	For 2-core cables

Product Dimensions


Flexibility	semi rigid
HW ± 20 %	1.5mm
HW ± 30 %	1.5mm
JW ± 20 %	1.5mm
JW ± 30 %	1.5mm
KW ± 20 %	1.5mm
M nom.	37mm
P ± 10 %	58.7mm
R ± 10 %	29.2mm
S ± 10 %	29.2mm
∅H max. b	7.0mm
∅H min. a	13.2mm
∅J max. b	6.1mm
∅J min. a	13.2mm
∅K max. b	6.1mm
∅K min. a	13.2mm

Downloads

RoHS datasheet

Download

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
ELV compliant (Article 4 - 2)	YES
Flammability	ASTM D635
Hazardous Goods	No
Nato number	5970-01-341-8346, 5970-12-304-2644, 5970-99-756-1153
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
UV-Stabilised	No

Logistics and Packaging


GTIN-13 / EAN	5022660418402
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	0.010001kg

More Information

UNSPSC Key

39121721
