T-Shapes, VG style/MIL style
Art.-No. 412-02016 | 1202-7-L-FPMX-BK | Details

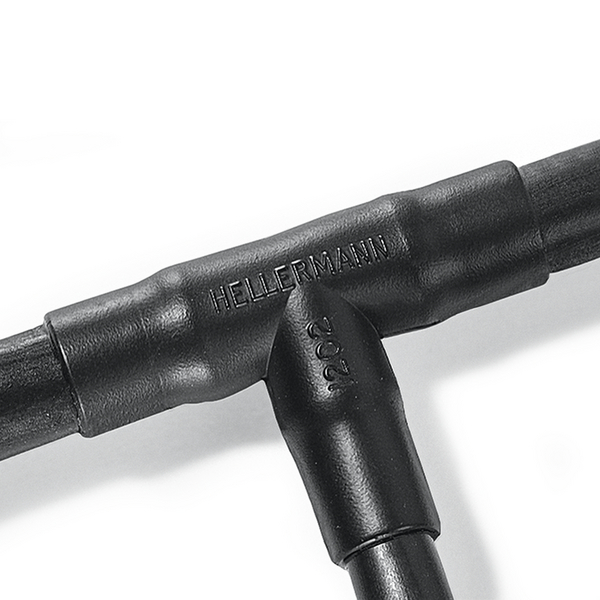

1202-1-G recovered onto a cable harness.

Strain relief, sealing and mechanical protection on cable harnesses

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

T-Shapes, VG style/MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Fluoroelastomer, cross-linked (FPMX)
PART DESCRIPTION	1202-7-L-FPMX-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 1200 Series
Product Group	T-Shapes, VG style/MIL style
Type	1202-7-L
Variant	For 2-core cables

Product Dimensions


HW ± 30 %	1.5mm
JW ± 30 %	1.5mm
KW ± 20 %	1.5mm
M nom.	10mm
P ± 10 %	59mm
R ± 10 %	29.5mm
∅H max. b	7mm
∅H min. a	14mm
∅J max. b	7mm
∅J min. a	14mm
∅K max. b	10mm
∅K min. a	14mm

Downloads

RoHS datasheet

Download

Specifications

Nato number	5970-01-449-4361
ROHS compliant	Yes
Shelf Life	5 years
Specifications
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	5022660418556
Packaging 1 - Height (m)	0.020m
Packaging 1 - Length (m)	0.160m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00032m³
Packaging 1 - Weight (kg)	0.006001kg
Packaging 1 - Width (m)	0.100m

More Information

UNSPSC Key

39121721
