T-Shapes, VG style/MIL style
Art.-No. 412-05008 | 1205-1-J-PO-X-BK |  Details

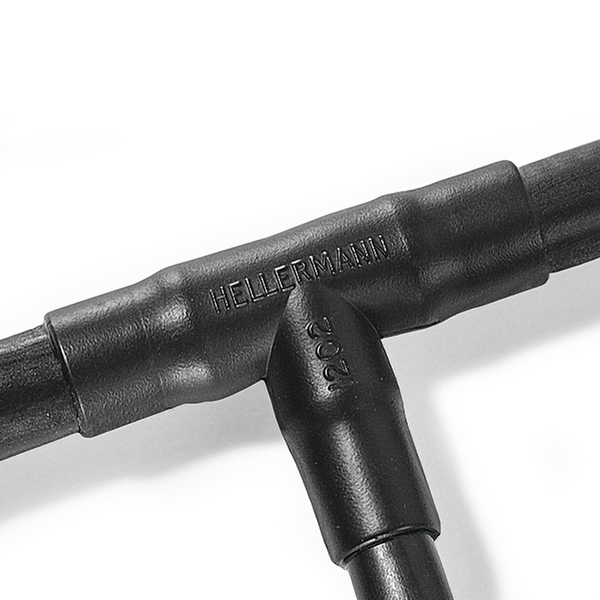

1202-1-G recovered onto a cable harness.

    • Strain relief, sealing and mechanical protection on cable harnesses
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1205-1-J-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 1200 Series
    Product Group T-Shapes, VG style/MIL style
    Type 1205-1-J
    Variant For 2-core cables
    Flexibility semi rigid
    HW ± 20 % 1.5mm
    JW ± 20 % 1.5mm
    JW ± 30 % 1.5mm
    KW ± 20 % 1mm
    M nom. 11mm
    P ± 10 % 50.8mm
    R ± 10 % 25.4mm
    S ± 10 % 25.4mm
    ∅H max. b 8.9mm
    ∅H min. a 17.7mm
    ∅J max. b 8.9mm
    ∅J min. a 17.1mm
    ∅K max. b 3.8mm
    ∅K min. a 7.6mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-01-090-2517
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 5022660419430
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00032m³
    Packaging 1 - Weight (kg) 0.004001kg
    Packaging 1 - Width (m) 0.100m
    UNSPSC Key 39121721
