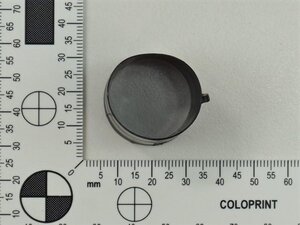

Bottle Shape with Rib VG-Style for Plugs black, PO-X, 4:1
Art.-No. 401-52085 | 152-42-HW21-PO-X-BK |  Details

150 Series boot recovered onto a connectors.

    • Use in conjunction with circular grooved adaptors
    • Strengthened strain relief by usage of an additional inner lip
    • Excellent protection against environment impacts
    • Eliminates moisture ingress to harness
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 152-42-HW21-PO-X-BK
    Pack Content 1pc.

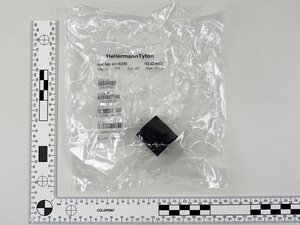

    Package Content packed in bag
    Product Family Helashrink 150 Series, with rib
    Product Group Bottle Shapes, VG style
    Shrink Ratio 4:1
    Type 152-42-HW21
    Variant For plug
    Flexibility semi rigid
    HW ± 20 % 1.6mm
    JW ± 20 % 0.5mm
    JW ± 30 % 1.0mm
    P ± 10 % 38mm
    R nom. 21mm
    R ± 10 % 21mm
    S nom. 10mm
    T ± 20 % 1.0mm
    V ± 10 % 3.0mm
    ∅H max. b 10.5mm
    ∅H min. a 24mm
    ∅J max. b 6mm
    ∅J min. a 24mm
    Adhesive W21
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    ELV compliant (Article 4 - 2) YES
    Flammability ASTM D635
    Hazardous Goods No
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +105 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Specifications VG 95343 NAVSEA 5617649
    GTIN-13 / EAN 5022660667213
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 0.18m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00058m³
    Packaging 1 - Weight (kg) 0.003001kg
    Packaging 1 - Width (m) 0.16m
    UNSPSC Key 39121721
