Angle Shapes
Art.-No. 418-07007 | 1807-5-L-PO-X-BK | Details

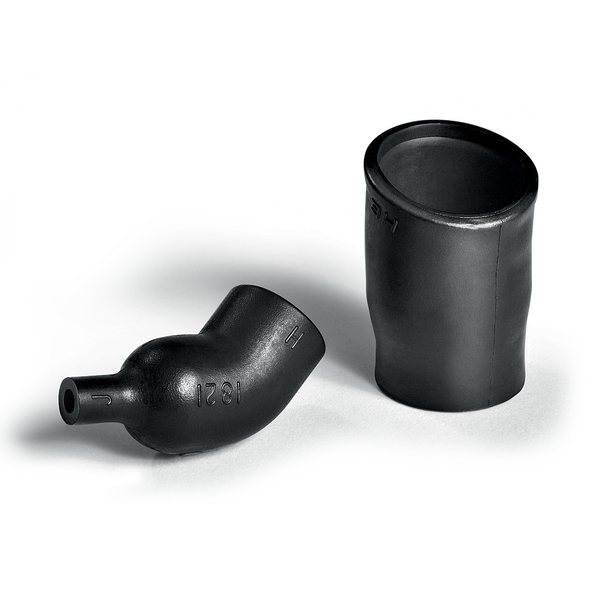

1821-42 supplied / fully recovered.

Provides strain relief and mechanical protection for harness systems
Use in conjunction with a circular grooved adaptor

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1807-5-L-PO-X-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
Product Group	Angle Shapes
Type	1807-5-L

Product Dimensions


Flexibility	Flexible
HW ± 20 %	1.8mm
JO ± 10 %	15.2mm
JW ± 20 %	1.8mm
P ± 10 %	43.2mm
R nom.	10.2mm
R ± 10 %	7.2mm
S nom.	3.0mm
T ± 20 %	1.0mm
∅H max. b	18.0mm
∅H min. a	18mm
∅J max. b	7.4mm
∅J min. a	14.8mm

Downloads

RoHS datasheet

Download

Specifications

Flammability	ASTM D635
Min. Shrink Temperature - °C	+135 °C
Operating Temperature	-55 °C to +200 °C
ROHS compliant	Yes
Specifications
Tensile Strength	13MPa
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN

5022660441547

More Information

UNSPSC Key

39121721
